VIVID Audio
Giya G4 Cu
GIYA G4
THE DRIVE FOR PERFECTION, UUTUUS!

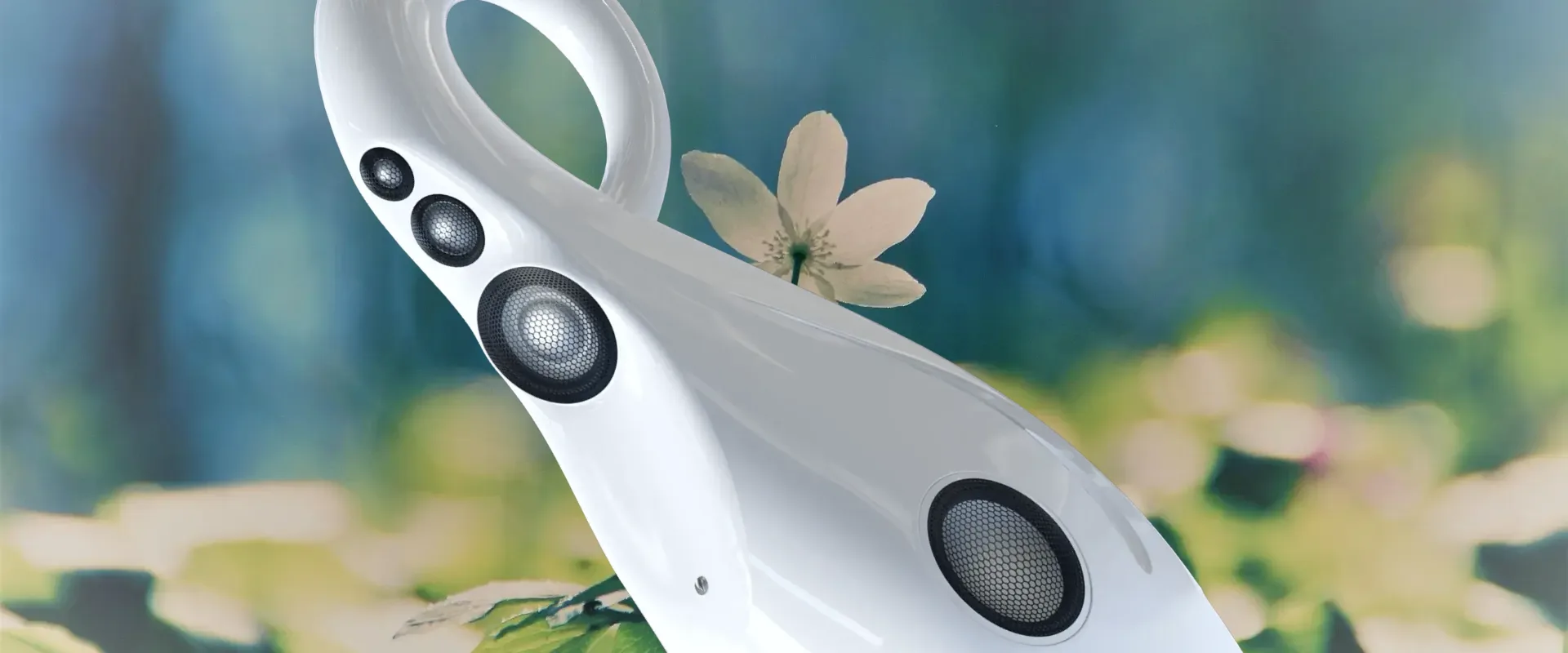

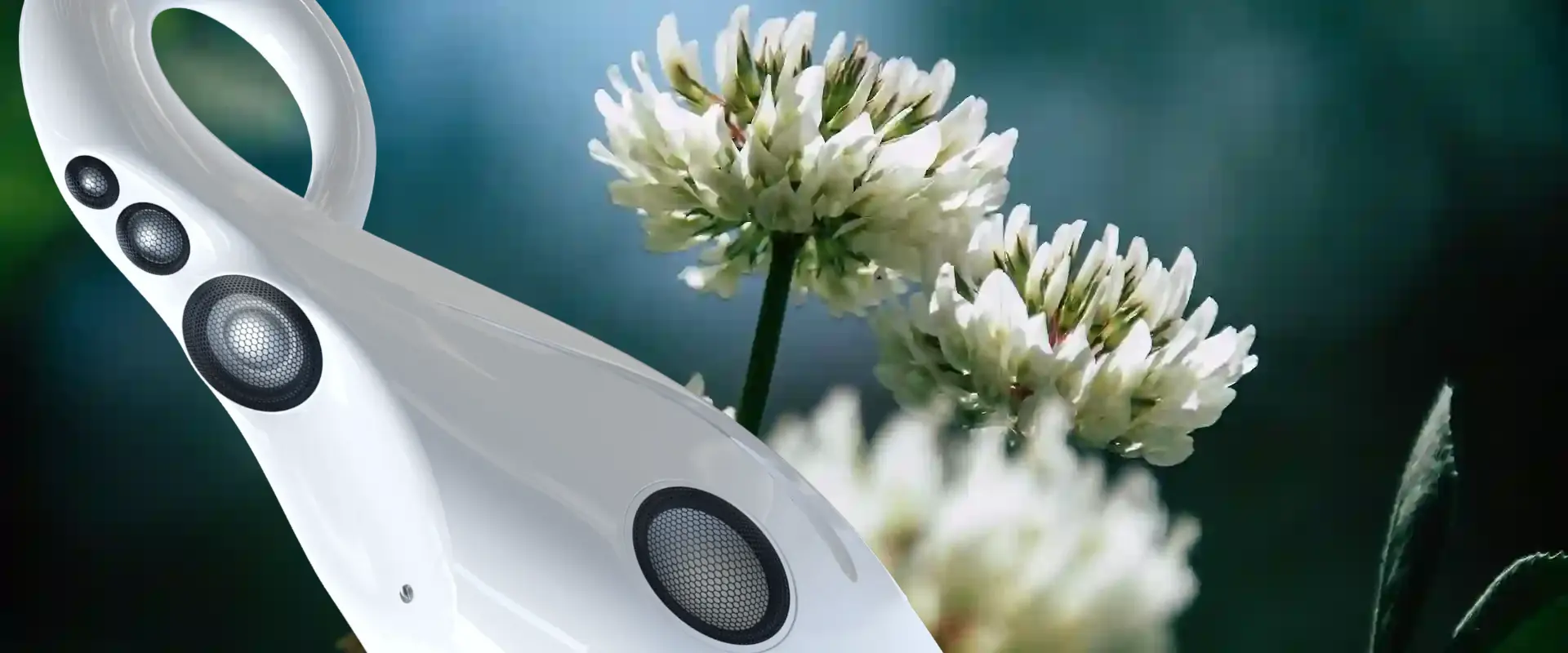

GIYA G4 Cu
4-WAY 5-DRIVERS
Nauti autenttisesta GIYA-toistosta ja estetiikasta myös pienessä huonetilassa.
Suurempien GIYA-mallien teknologia on sijoitettu säntillisen pikkutarkasti näihin vain metrin korkuisiin pikkuisiin.
Luonnetta, voimaa ja läsnäoloa, jotka päihittävät komeasti tämän lilliputin fyysiset mitat.
Vivid Audio GIYA G4 Cu
Katso GIYA G4 Cu tekniset tiedot/ Specifications
| Configuration | 4-way, 5 driver |
|---|---|
| Cabinet material | Glass reinforced balsa cored sandwich composite, carbon fibre base |
| Cabinet colour | Piano Black, Lexus Pearl White, Oyster Matte |
| Bespoke cabinet colour | Bespoke colour options available on request |
| Drive units | HF: D26 – 26mm alloy/carbon diaphragm dome unit with Tapered Tube loading |
| Upper-mid: D50Cu – 50mm alloy/carbon diaphragm dome unit with copper cap and Tapered Tube loading | |
| Lower-mid: C100SCu – 100mm alloy cone/50mm voice coil (equivalent to 5.5” driver) unit copper cap with Tapered Tube loading | |
| Bass: C125L – 2 x 125mm metal cone/50mm voice coil (equivalent to 7”) drivers with underhung motor design | |
| Bass loading | Exponentially tapered tube enhanced bass reflex |
| Sensitivity | 86 dB @ 2,83 Vrms at 1 m on axis |
| Nominal impedance (Ω) | 6 nominal, 4 minimum, low reactance |
| Frequency range (Hz) | -6 dB points: 36 – 36.000 |
| First D26 Break Up mode (Hz) | 44.000 |
| Frequency response (Hz) | 39 – 33.000 +/- 2 dB on reference |
| Harmonic distortion (2nd and 3rd harmonics) | <0.5% below 250Hz, <0.1% between 250Hz and 3.5kHz, <0.3% above 3.5kHz |
| Cross over frequencies (Hz) | 250 – 1000 – 4.000 |
| Power handling (music program) | 400 watts rms |
| Loudspeaker dimensions | 1.011mm (H) x 300mm (W) x 460mm (D) – 39.80” (H) x 11.81” (W) x 18.11” (D) |
| Net weight | 25,4kg (56lbs) internal crossover – 21kg (46lbs) external crossover |
G4 Plinth (optional)
Dimensions
100 mm (H) x 280 mm (W) x 480 mm (D)
Net weight
6,6 kg
THE DRIVE FOR PERFECTION
Despite its modest dimensions, the GIYA G4 Cu is a true four-way loudspeaker, with five drivers all designed and made entirely in-house.
The C100S low mid-range and twin C125L bass drivers are specially designed to produce the maximum output from their compact cones and chassis. High and mid frequencies are handled by the same D26 and D50 drivers, with our patented Tapered Tube loading, as the rest of the GIYA family.
The transparent, accurate and wholly natural sound is everything you’d expect: what might surprise you is the sheer weight and power of that sound.
