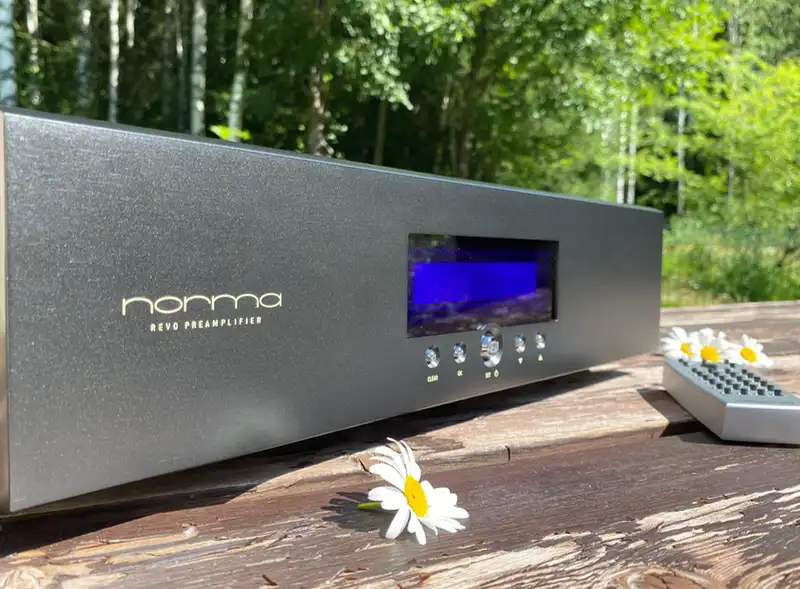

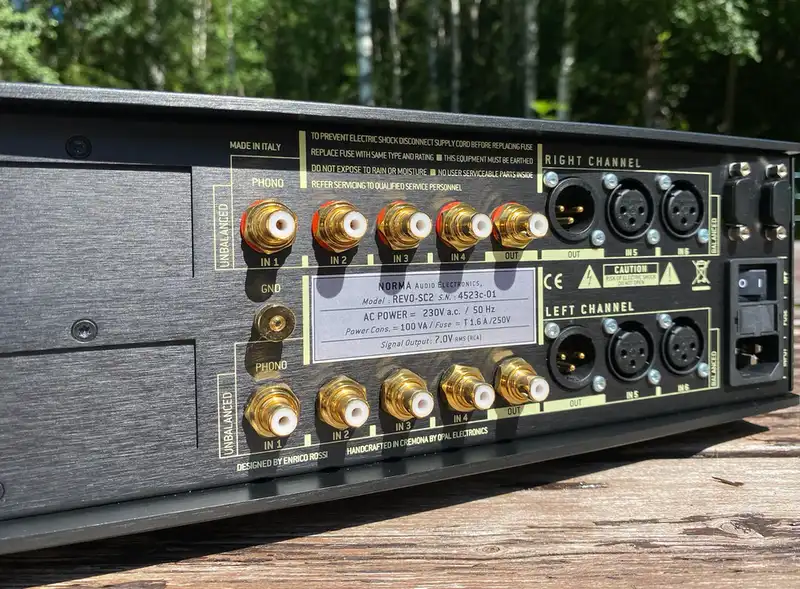

Technical Specifications
Input
high speed schematic topology and wide band (>2 MHz)
Input Impedance
47Kohm (not selected input) / 10 Kohm (Selected Input)
Input Configuration
Phono MM/MC, Line, Balanced, Multichannel & DAC option
Output
1 RCA, 1 XLR Balanced
Output Impedance
220 ohm
Output Voltage
7.5 V r.m.s.
Frequency Response
0 Hz – 2.0 MHz (-3dB, non filtered)
Gain
17.5 dB Active mode, 0 dB Passive mode
Circuitation
Solid state, Dual Mono, hi speed, low noise
Supply
230 V AC / 50 Hz (100V AC or 115 VAC / 50-60Hz in some countries)
Dimensions (HxWxD)
110 x 430 x 365 mm
Weight
15 Kg
Note

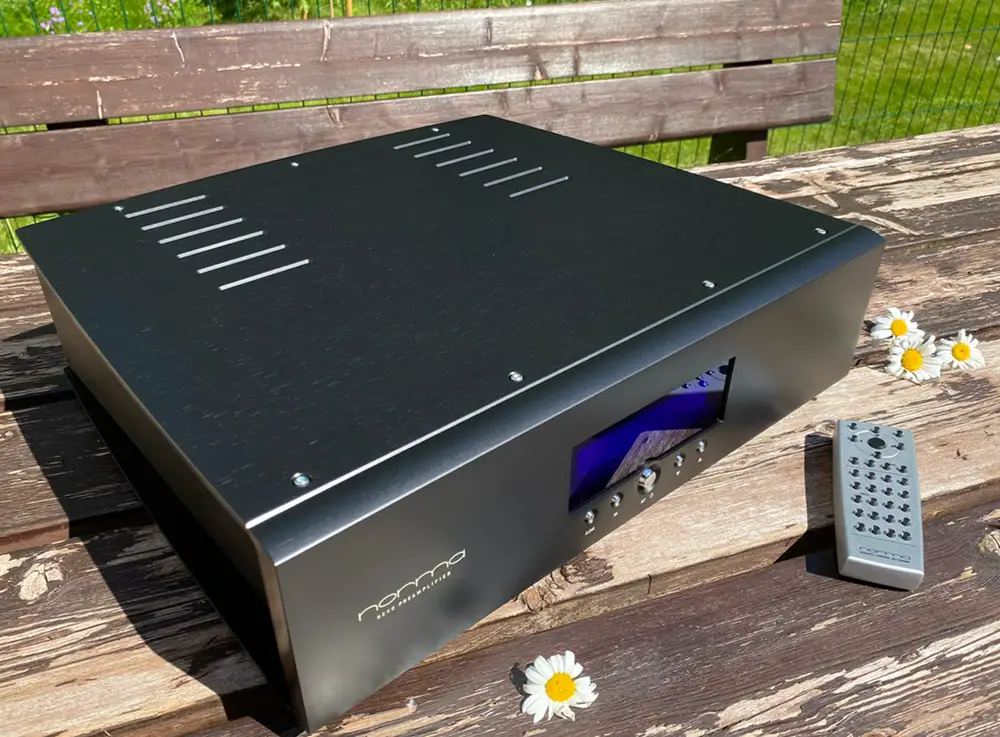

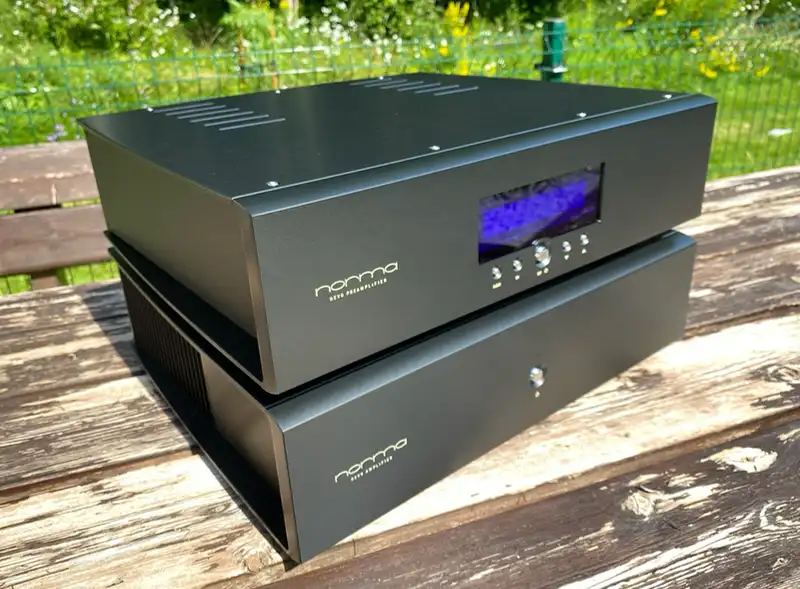

Stereophonic Preamplifier completely RC

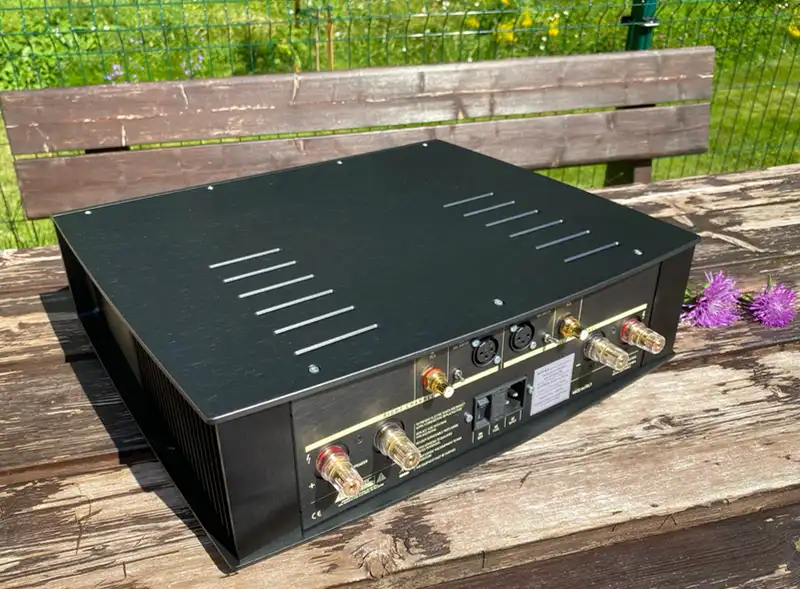

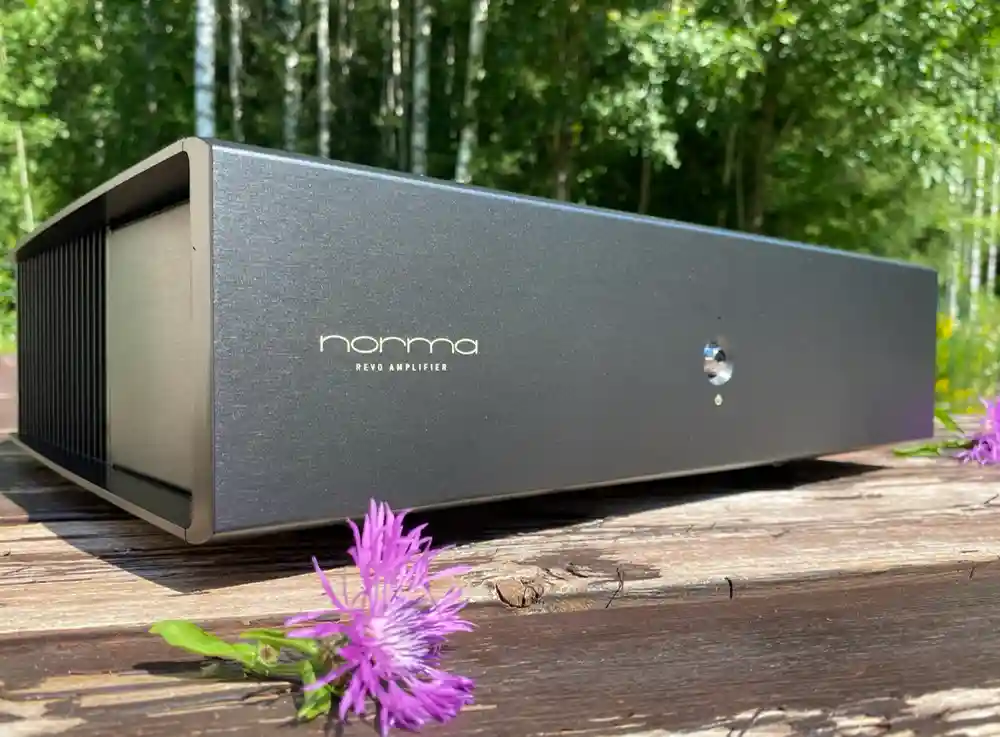

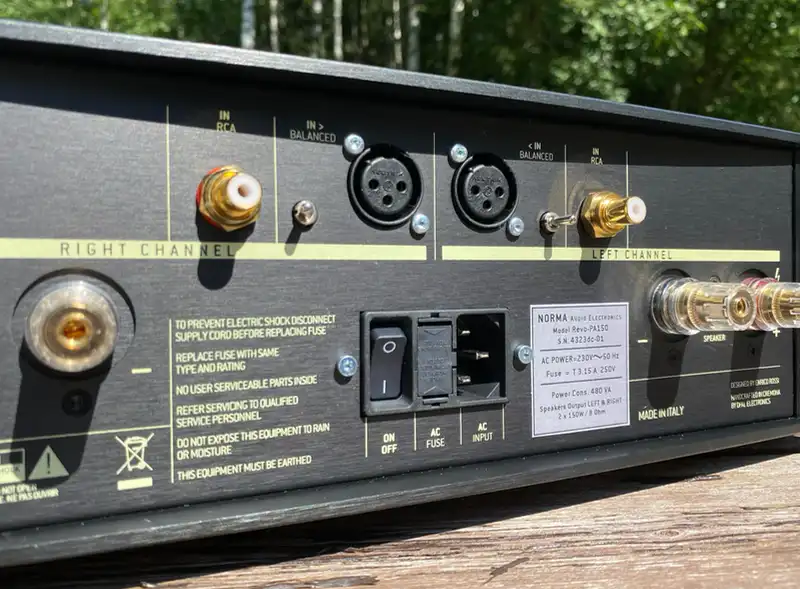

Technical Specifications

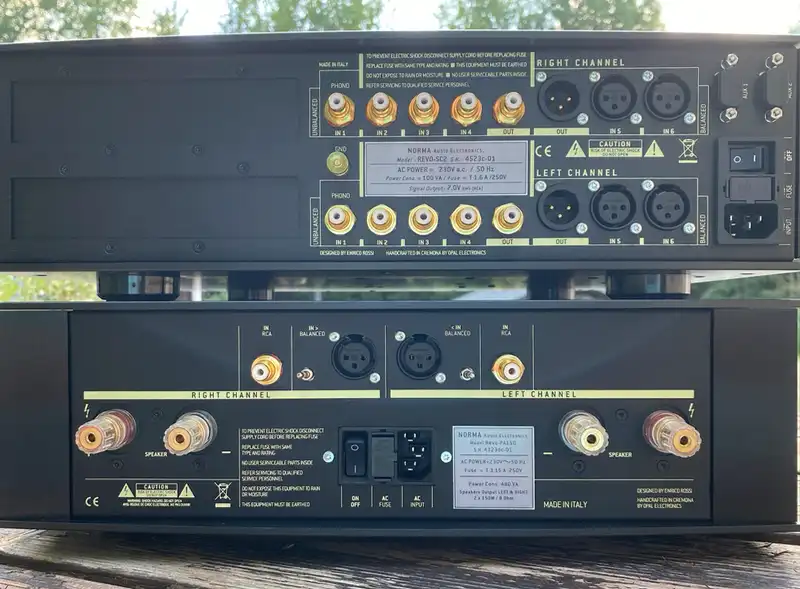

Connections
1 RCA, 1 XLR Balanced
Input Impedance
47Kohm (non sel. input) / 33Kohm (sel. input)
Outputs Voltage
1 Binding Post couple, 4mm Banana and forks
Frequency Response
0 Hz – 2.0 MHz (-3dB, non filtered)
Output Power
150W RMS / 8Ohm – 280W RMS / 4 Ohm (per channel)
Gain, Sensitivity
28.5 dB, 1.30 V r.m.s. / 150 W – 8 Ohm
Configuration
Dual Mono
Configuration
Solid state
Power devices
MosFet, 4 couple each channel
Available output current
48 A continuous, 200 A peak (each channel)
Capacity of filter
72.000 Uf, 12 capacity for each channel
Electric Transformers
2 toroidal special audio use, 400 VA each channel
Supply
230 V AC / 50 Hz (100V AC or 115 VAC / 50-60Hz in some country)
Dimensions (HxWxD)
110x430x365mm (excluding footers and rear connections)
Note

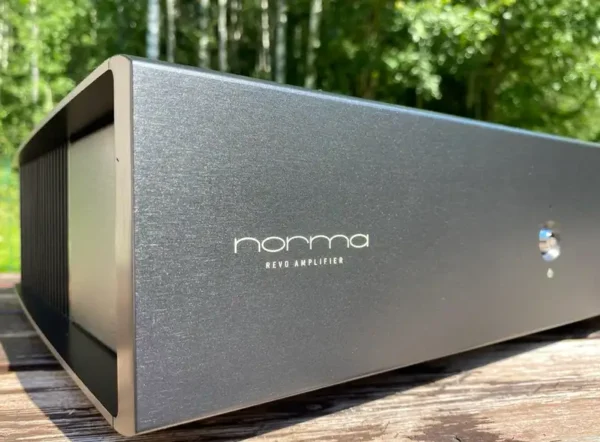

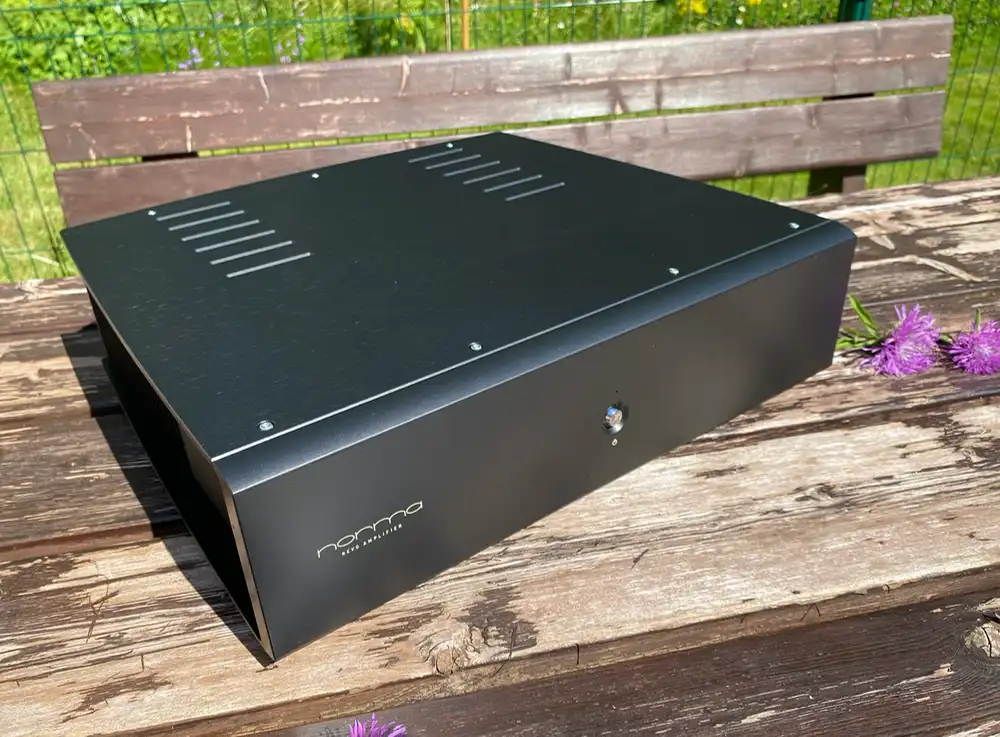

Stereophonic final amplifier
Weight
25 Kg
