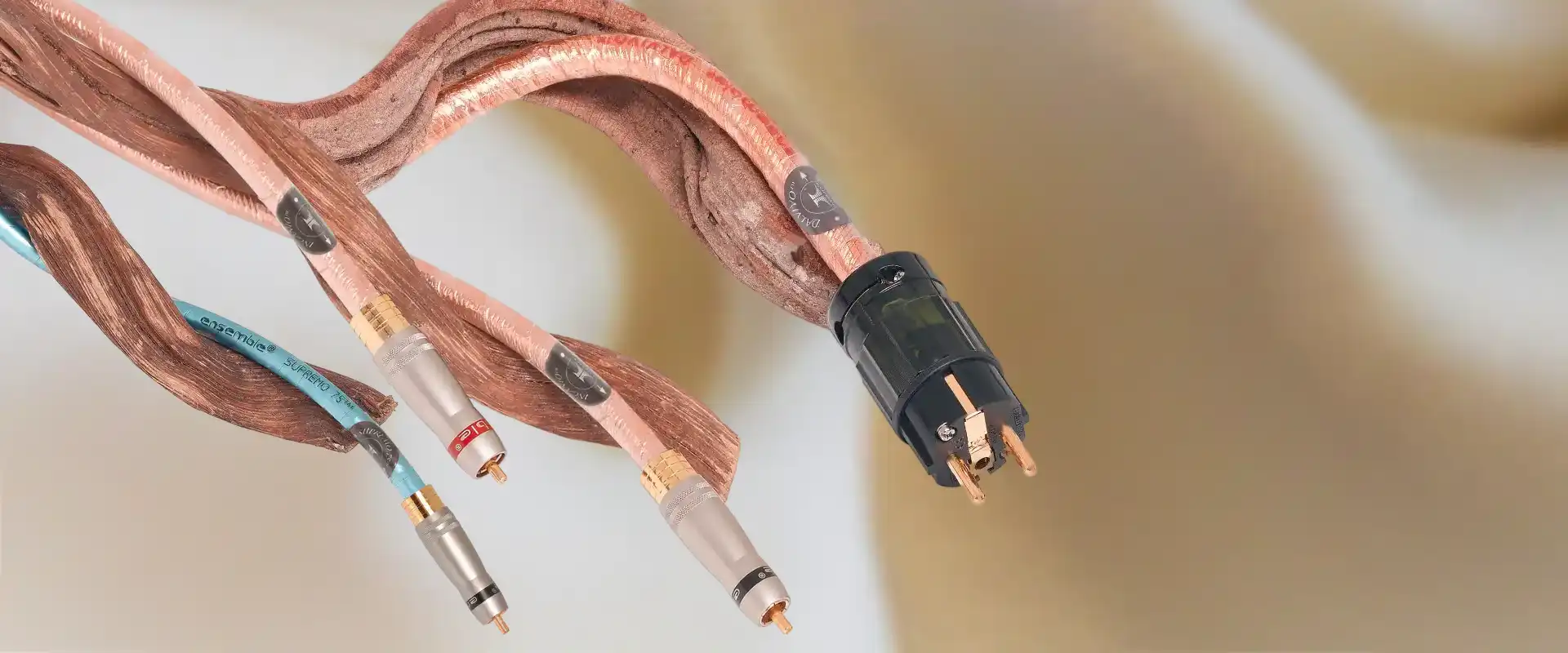

ensemble kaapelit
swiss made quality since 1986
Virtatuotteet
LUMINOSO™ POWER CABLE
analog
ensemble® luminoso™
Virtakaapeli
Undisturbed, uncoloured power transmission
Equipment can give its best
3 X AWG 14 ( 2.08 mm² ) pure copper conductors in helical array.
3 x single + 2 x overall shields for effective interference rejection
Very deep silent background.
Anti-resonance construction, minimal dielectric loss.
Katso tekniset tiedot/specifications Luminoso™ power cable
– 3 x AWG 14 ( 2,08 mm) conductors in helical array,
individually screened plus 2 x overall shields
– diameter 11 mm
– bending radius 8.5 cm
– resistivity 0.0073 ohm / m
– capacitance 155 pF / m ( 1 kHz )
– very high purity copper – for reliable results, also long term
– optimal balance between electrical parameters
– very low dielectric dissipation – for fast signal transmission
– screening on all levels – for effective protection from interference
– mechanical damping – for excellent anti-resonance behaviour
– flexibility and mechanical integrity, UV and microbe stability
– environment-friendly materials: no PVC, no halogenide materials
– spark test 1500 V
– good-looking, good haptic feel
analog
ensemble® dalvivo™
Virtakaapeli
Full power transmission, free from interference
Unlocks slumbering sound potential
7 x AWG 14 ( 2.08 mm² ) pure copper conductor in helical array
7 x single + 3 x overall shield, providing deep, silent background
Anti-resonance construction, minimal dielectric loss.
Very low capacitance and inductance.
DALVIVO™ POWER CABLE
Katso tekniset tiedot/specifications Dalvivo™power cable
· 7 x AWG 14 ( 2.08 mm! ) conductors in helical array,
individually screened plus 3 x overall shields
· diameter 14.3 mm
· bending radius 22 cm
· resistivity 0.0049 Ohm / m ( power cable: P and N )
· capacitance 105 pF / m ( 1 kHz )
· inductance 0.0005 mH / m ( 1- 10 MHz )
- very high purity copper – for reliable, long term results
- excellent electrical values – for wide equipment compatibility
- optimal balance between electrical parameters – for natural sound
- very low dielectric dissipation – for fast signal transmission
- screening on all levels – for effective protection from interference
- topology of shields and conductors optimized
- mechanical damping – for excellent anti-resonance behaviour
- flexibility and mechanical integrity, UV and microbe stability
- environment-friendly materials: no PVC, no halogenide materials
- maximum continuous voltage: DALVIVO 300 V ; spark tested to 1500 V
POWER LINK PLUS™ POWER DISTRIBUTION UNIT
analog
ensemble® power link plus™
Power distribution unit
The distribution unit can dispatch AC to eight pieces of equipment.
Housed in an aluminum chassis to maximize high-frequency interference rejection and fitted with excellent contacts, the POWER LINK also sports a phase indicator, ie a blue LED that lights up when the unit is powered in correct phase.
This feature allows operation of all attached equipment with the lowest possible stray currents (voltage to ground), further reducing the noise floor.
Katso tekniset tiedot/specifications Power Link Plus™
| Input | International standard appliance coupler IEC 320 / C14, 15 A / 125 V , 10 A / 250 V |
| Outlets | Model 1: 8 General European Type (SCHUKO), 16 A / 250 V Model 2: 8 US-Type (Nema 5-15) sockets, 15 A / 125 V Power rating 1) Total maximal power to be consumed by equipment connected to it: Model 1: max. 2500 W / 230 V Model 2: max. 1800 W / 125 V |
| Phase indicator | blue LED lights up when distribution unit is powered up in correct phase |
| Phase orientation | right-hand contact (as viewed from front), on input (IEC 320/ C14) as well as on US (Nema 5-15) and European (SCHUKO) sockets |
| AC ground | electrical input must see a 3-pole cable carrying a ground (earth) contact |
| Chassis | anodized aluminum chassis with upholding brackets; laquered heavy steel plates for rock – solid support option: chassis flat-lying, with simple sides |
| Dimensions (wdh) | 542 x 95 x 141 mm (21.3″ x 3.7″ x 5.5″) 590 x175 x 100 mm (23.2″ x 7″ x 4″) boxed |
| Warranty | 2 years on parts with the exception of faults due to mishandling, unauthorized modification, or overload. |
Interconnect cables analog & digital
analog
ensemble® espressivo™ RCA OR XLR
Interconnect/välikaapeli
Undisturbed, uncoloured power transmission
Equipment can give its best
3 X AWG 14 ( 2.08 mm² ) pure copper conductors in helical array.
3 x single + 2 x overall shields for effective interference rejection
Very deep silent background.
Anti-resonance construction, minimal dielectric loss.
ESPRESSIVO™ RCA OR XLR INTERCONNECT
Katso tekniset tiedot/specifications
– 5 x 0.34 mm2 ( ≈ AWG 22 ) conductors in helical array, individually screened plus 2x overall shields
– diameter 8.2 mm
– bending radius 6 cm
– resistivity ( single conductor ) 0.049 ohm / m
– capacitance ( single conductor ) 90 pF / m ( 1 KHz )
– very high purity copper – for reliable results, also long term
– optimal balance between electrical parameters
– very low dielectric dissipation – for fast signal transmission
– screening on all levels – for effective protection from interference
– mechanical damping – for excellent anti-resonance behaviour
– flexibility and mechanical integrity, UV and microbe stability
– environment-friendly materials: no PVC, no halogenide materials
– spark test 1500 V
– good-looking, good haptic feel
analog
ensemble® INCANTO™ RCA or XLR
Interconnect/välikaapeli
7 individually shielded 0.34 mm2 conductors, 3 overall shields.
Ultra-low noise floor, very low capacitance and inductance.
RCA plug Ensemble ALLINO™: tellurium copper body and contact, gold plated, silver underlay.
INCANTO™ RCA or XLR interconnect
Katso tekniset tiedot/specifications
- 7 x 0.34 mm! ( ~ AWG 22 ) conductors in helical array,
- individually screened plus 3 x overall shields
- diameter 9.5 mm
- bending radius 15 cm
- resistivity ( single conductor ) 0.026 Ω / m ( hot conductor )
- capacitance ( conductor / conductor ) 60 pF / m ( 1 KHz )
- inductance ( conductor / conductor ) 0.0007 mH / m ( 1- 10 MHz )
- very high purity copper – for reliable, long term results
- excellent electrical values – for wide equipment compatibility
- optimal balance between electrical parameters – for natural sound
- very low dielectric dissipation – for fast signal transmission
- screening on all levels – for effective protection from interference
- topology of shields and conductors optimized
- mechanical damping – for excellent anti-resonance behaviour
- flexibility and mechanical integrity, UV and microbe stability
- environment-friendly materials: no PVC, no halogenide materials
Digital
digital
ensemble® incanto™ 110 OHM AES/EBU XLR
Interconnect/välikaapeli
Individually shielded 0.34 mm² conductors, with 3 overall shields. XLR termination.
Ultra-low noise floor.
Very low capacitance and inductance.
Anti-resonance construction.
Katso tekniset tiedot/specifications
- precise 110 ohm balanced digital transmission cable, for AES / EBU connections
- 0.34 mm² ( ~ AWG 22 )) pure copper conductors in helical array
- single conductor plus 3 overall shields for perfect interference rejection
- excellent electrical values, extremely low capacitance
- extremely low dielectric absorption
- mechanical damping for very good anti-resonant behaviour
- ultra-low noise floor
- high frequency spikes suppression
- halogen-free, durable, hard-wearing, transparent sleeve
- XLR termination
INCANTO™ 110 OHM AES/EBU XLR DIGITAL TRANSMISSION CABLE
digital
ensemble® supremo™ 75 OHM RCA or BNC
Digital transmission cable
Coaxial cable with quadruple shielding.
Extended frequency range, high-speed transmission.
Extremely low noise floor.
Anti-resonance construction.
RCA plug Ensemble ALLINO™ .
SUPREMO™ 75 OHM RCA OR BNC DIGITAL TRANSMISSION CABLE
Katso tekniset tiedot/specifications
- precise 75 ohm coaxial cable for digital audio, video, CATV
- at the limits of best possible transmission characteristics
- quadruple shielded for absolute freedom from interference
- ultra-fast signal transmission, extended bandwidth
- negligible signal attenuation ( 0.044 dB/m – 50 MHz )
- no phase shift
- single, high purity copper conductor
- high-frequency spikes suppression
- extremely low dielectric absorption
- very low capacitance
- durable, hard-wearing, transparent sleeve
- Ensemble BNC or RCA termination
Kaiutinkaapelit
ensemble® luminoso™
3 x 2.1 mm2 conductors individually shielded, 2 overall shields.
Very deep silent background.
Anti-resonance construction, minimal dielectric loss.
LUMINOSO™ SPEAKER CABLE
Katso tekniset tiedot/specifications
- 3 x AWG 14 ( 2,08 mm) conductors in helical array,
- individually screened plus 2 x overall shields
- diameter 11 mm
- bending radius 8.5 cm
- resistivity 0.0073 ohm / m
- capacitance 155 pF / m ( 1 kHz )
- very high purity copper – for reliable results, also long term
- optimal balance between electrical parameters
- very low dielectric dissipation – for fast signal transmission
- screening on all levels – for effective protection from interference
- mechanical damping – for excellent anti-resonance behaviour
- flexibility and mechanical integrity, UV and microbe stability
- environment-friendly materials: no PVC, no halogenide materials
- spark test 1500 V
- good-looking, good haptic feel
ensemble® dalvivo™
Kaiutinkaapelit/speakercable
7 x 2.1 mm2 conductors individually shieded, 3 overall shields.
Ultra-deep silent background, anti-resonance construction, minimal dielectric loss.
Very low capacitance and inductance.
DALVIVO™ SPEAKER CABLE
Katso tekniset tiedot/specifications
- 7 x AWG 14 ( 2.08 mm! ) conductors in helical array, individually screened plus 3 x overall shields
- diameter 14.3 mm
- bending radius 22 cm
- resistivity 0.0032 Ohm / m ( speaker cable: L or R )
- capacitance 105 pF / m ( 1 kHz )
- inductance 0.0005 mH / m ( 1- 10 MHz )
- very high purity copper – for reliable, long term results
- excellent electrical values – for wide equipment compatibility
- optimal balance between electrical parameters – for natural sound
- very low dielectric dissipation – for fast signal transmission
- screening on all levels – for effective protection from interference
- topology of shields and conductors optimized
- mechanical damping – for excellent anti-resonance behaviour
- flexibility and mechanical integrity, UV and microbe stability
- environment-friendly materials: no PVC, no halogenide materials
- maximum continuous voltage: DALVIVO 300 V ; spark tested to 1500 V
Why ensemble® cables?
Cables and connectors can make or break a whole system.
As audio is modulated electricity, the importance of cables is not only on the signal transporting side but
just as well on the power line side, starting from a wall socket.
Ensemble has therefore developed sophisticated, audio-friendly shielding techniques that provide superlative protection and distinguish the Ensemble CABLES right away from other cables.
With such an excellent electrical foundation, electronic circuits can work without being stressed by disturbances, and signals can be transmitted in an envelope of deep silence, only to let the myriad of smallest inflexions in the music and atmospheric cues come through undisturbed.
The result is live-like music-making, which has been said to be so typical of an Ensemble performance.
