mola mola kula – integrated amp
D-luokan integroitu vahvistin

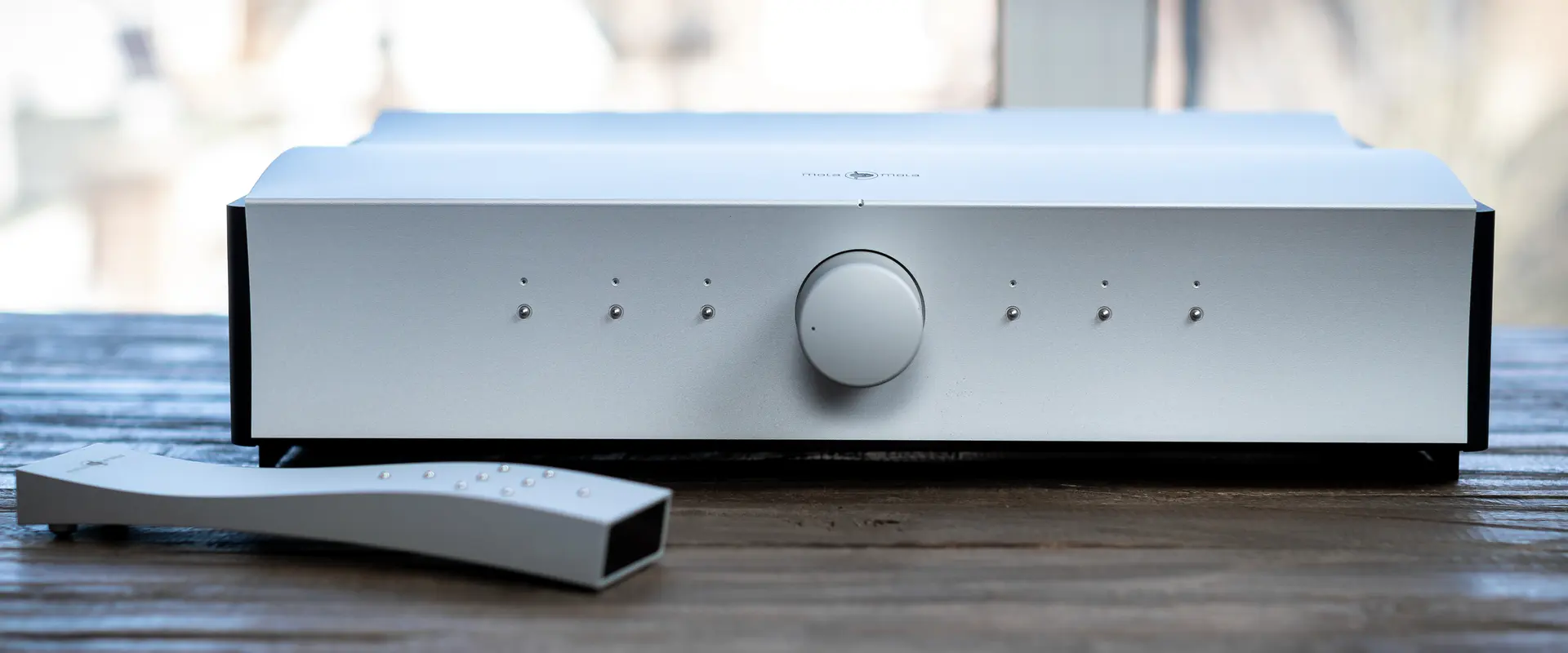

Mola Mola Kula
INTEGROITU VAHVISTIN – KOKOAAN SUUREMPI
Helmi omassa luokassaan!
Virtaviivainen ja kompakti huippuluokan integroitu, jossa riittävästi tehoa ja voimaa käsitellä vaativimpiakin kaiuttimia.
Täydennettävissä DAC- ja/tai phono-kortilla.
Mitä muuta tarvitset?
Mola Mola Kula integrated amp
Katso tekniset tiedot/ Key features MOLA MOLA Kula
I/o
3 balanced and 3 unbalanced inputs, selectable by switch and software
2 Pairs of Furutech binding posts. Directly connected to the amplifier PCB using Kubala-Sosna cable.
All inputs routable through optional processor boards like the phono stage
Processing balance and input gain offset
Phase invert and mono sum
Full software control of routing and processing
Mastering mode
Performance
Maximum input level: 20dBu (7.75Vrms)
Input impedance: 100kohm
Unweighted Signal/Noise Ratio: 113dB
Output power: 2x 150W/8 Ohm, 2x 300W/4 Ohm
Distortion (THD) @1kHz: 100W/8R & 200W/4R <0.0004%
Output Impedance: 2m: (20-20kHz) (measured directly on binding posts)
Bandwidth 50kHz @ -3dB
Gain resolution: <1dB, better than 0.2dB over normal listening range
Control
6 programmable presets
(premium) Remote control
Mola Mola Remote app
Roon Ready (if DAC option fitted)
Add-ON
Mola Mola Phono stage
Mola Mola DAC
Dimensions and Weight
420mm (W) x 110mm (H) x 370mm (D). Depth includes volume knob and connectors. 11kg
häiriötöntä SYNERGIAA
Phono stage- ja DAC- add-ons
Katso hinnat ylhäältä Kulan kohdalta.
Phono stage
What was originally intended to be a simple RIAA add-on for the Makua Preamp has quickly spiraled into the quietest and probably most versatile phono stage ever built. MC/MM input stages are optimized for current noise and voltage noise respectively. Unlike the more common arrangement of an MC head amp feeding into the MM stage, the two stages are fully independent, realizing an equally short signal path for both. Input gain is switchable in 5dB steps over a 40dB range.
DAC add-on
The converter is a two board stack that fits into one of the option slots in the preamp. On the first board, all incoming digital audio is upsampled to 3.125MHz/32 bits and converted to noise shaped PWM. On the other board are two mono DACs, in which a discrete 32- stage FIR DAC and a single-stage 4th order filtering I/V converter, convert the PWM into analogue with a breathtaking 130dB SNR.
Imagine a sleek, compact design that oozes class.
Imagine an amplifier design that packs enough power to comfortably handle even the most demanding of loudspeakers.
Imagine a complex yet agile and easy to use fully transparent line stage.
Imagine every possible Phono EQ setting available from the comfort of your listening chair.
Imagine a highly acclaimed discrete DAC boasting the best specs and sound around.
Imagine, combining all of the above!
Reality. Is. Kula!
