dac/STRIIMERI/
DIGITAALINEN ESIVAHVISTIN

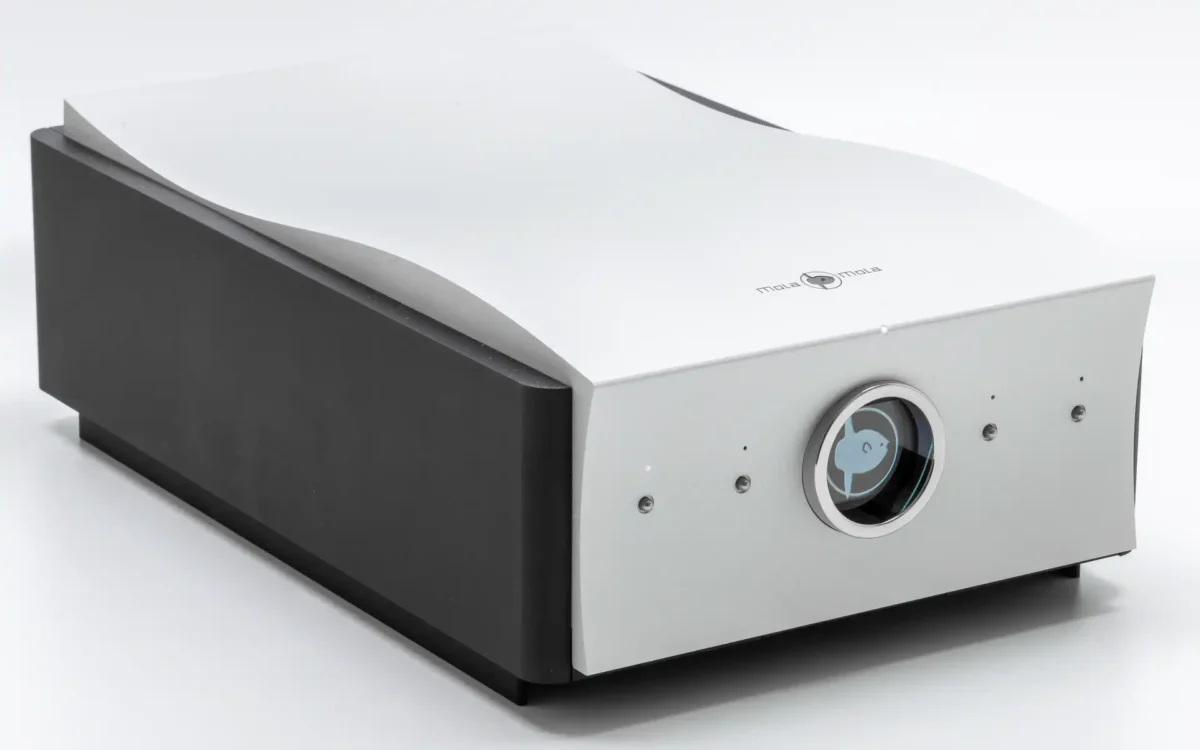

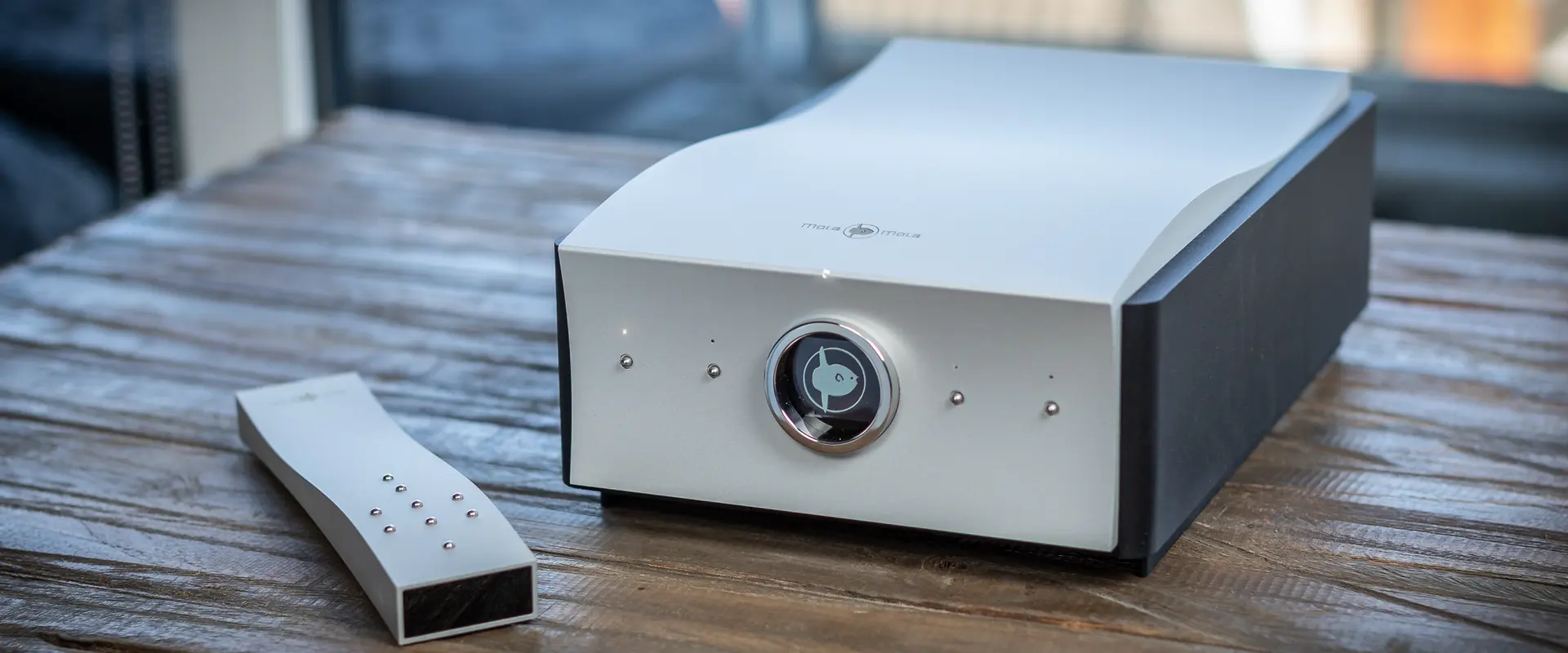

Mola Mola Tambaqui
DAC/STRIIMERI/ DIGITAALINEN ESIVAHVISTIN
ANALOGISEN KALTAISTA DIGITAALISUUTTA
Häikäisevä innovaatio!
Mikäli olet siirtymässä puhtaaseen digitaalisuuteen niin rakenna kätevästi minimalistinen ja puhtaasti soiva audiosysteemi:
Yhdistä näppärän kokoinen Tambaqui DAC Mola Molan Kaluga -monopäätteisiin. Tai Mola Molan stereopäätevahvistin Percaan.
Tambaquissa saat huippuluokan D/A-muuntimen lisäksi digitaalisen esivahvistimen, striimerin sekä kuulekovahvistimen
Mola Molan Tambaqui DAC on täydellinen laitepäivitys myös silloin, kun haluat säilyttää nykyisen esivahvistimesi tunnusomaisen soundin mutta samalla nostaa digitaalilähteesi aivan uudelle tasolle.
Mola Mola Tambaqui
Katso tekniset tiedot/ Specifications MOLA MOLA Tambaqui
Operating Principle
PWM DAC with 32-stage discrete analogue FIR output stage. Avoids ’sigma delta’ tones and ’R2R’ glitch and low-level linearity errors.
Asynchronous upsampling to 3.125MHz/32 bit. 7-th order noise shaper clearing 80kHz band. Each input rate has an optimized upsampling filter chain.
I/O
Optical (Toslink)
S/PDIF (Cinch)
AES/EBU (XLR)
USB type B
Ethernet (Roon Ready)
Bluetooth (SBC, AAC, APTX, LDAC)
IВІS over HDMI
Balanced output (XLR)
Headphone output (6.3mm Jack, Balanced XLR 4pin)
2 programmable trigger outputs (3.5mm Jack)
Processing balance and input gain offset
Selectable output levels
Phase invert
Supported formats
PCM up to 384kHz/32 bits (>192kHz and >24 bits via USB and Roon only)
DoP and Native DSD up to quad speed (USB and Roon only)
Performance
Full-Scale Output Level (XLR): 18dBu
Full-Scale Output Level (headphone): 18dBu
Signal to Noise Ratio: 130dB
THD, IMD: not measurable (estimated -140dB)
Bandwidth: Up to 80kHz (apodizing response)
Integrated jitter: <1ps from 10Hz upwards, <300fs from 1kHz upwards
Jitter rejection: >80dB at 1Hz after 20 seconds of loc
CONTROL
Front button source selection and volume setting
4 programmable presets
(Premium) Remote Control
Mola Mola Remote app
Dimensions and weight
200mm (W) x 110mm (H) x 320mm (D)
5.2kg
eksklusiivista minimalismia
monipuolisemmin integroidulla
Responding to popular demand, Mola Mola launched the famous discrete DAC from the Makua as a separate unit.
Mola Mola’s Tambaqui DAC is the perfect upgrade for owners of complete high-end systems who want to retain the characteristic sound of their existing preamplifier whilst lifting their digital sources to another level.
The converter is a two board stack.
On the first board, all incoming digital audio is upsampled to 3.125MHz/32 bits and converted to noise shaped PWM.
On the other board are two mono DACs, in which a discrete 32- stage FIR DAC and a single-stage 4th order filtering I/V converter, convert the PWM into analogue with a breathtaking 130dB SNR.
