oracle audio analog
The Fine Art Of Playing Music
Levysoittimet
Paris MkV
While re-thinking the new MkV we felt it was very important to maintain the design signature of the original Paris turntable.
Everything else is a total redesign!
The Oracle mechanical design concepts are always intimately linked to the overlapping of different materials interacting within a same assembly for an optimal control of vibrations and resonances.
The Paris MkV follows that same construction philosophy…
Paris MkV
Katso tekniset tiedot/Specifications Paris MkV
Drive: AC synchronous motor, belt driven, external power adapter
Platter: Two piece platter consisting of an aluminum hub supporting the main acrylic platter.
Plinth dimension: (WxDxH) 19,5 x 15 x 5 inches.
The height measured at the top of tonearm is 5″; the height becomes 6″ with the dustcover installed.
Speed selection: Two buttons for 33 and 45 rpm, adjustable with potentiometer.
Suspension system: Adjustable, semi-floating sub-chassis on dual rod suspension system made of fibreglass and sorbothane decoupling.
Tonearm mounting specs:
Maximum center to center tonearm length accepted: 228 mm.
* The Paris tonearm has for basic structure the Project 9CC carbon tonearm. Oracle Audio developed the micro vibration silicone damping device for this tonearm which greatly enhances its performance. The Project 9cc damping kit is offered as an upgrade for anyone who owns a Project 9cc tonearm!
Power requirements: 100 / 120 / 230 volts @ 50 / 60 Hz
Turntable weight: 7 Kg ( 15 pounds )
Regular power supply: 24 to 28 VDC / 500ma ( standard configuration )
*Our optional Turbo Power Supply MkII is highly recommended for a maximum performance level!
Origine MkII
The new Origine turntable was created with one goal in mind; to answer the historical demand for an affordable, quality built and long-lasting record player from Oracle Audio!
Just like for our other products the Origine turntable is 100% designed, crafted and assembled at our factory in Canada. Although the Origine is at the entry point of our line of products it maintains the high standards of excellence that is expected from Oracle Audio
Origine MkII
Katso tekniset tiedot/ Specifications Origine MkII
Drive: AC synchronous outboard motor, belt driven, external power supply.
Platter: One-piece acrylic platter derived from the Paris MkV.
Tonearm: Unipivot with adjustable effective mass to accommodate various phono cartridge compliances.
Phono cartridge: Ortofon Mc-1 Turbo (optional). Pre-installed and calibrated at the factory!
Dustcover : A full dustcover for the Origine is available as an option.
Click here for the Origine Dustcover product page.
Adjustable delrin feet system.
Tonearm effective length: 240 mm
Platter spindle center to tonearm mounting hole center: 225 mm
Power supply: 18V AC
Weight: 7.7 kg or 17 pounds (including the motor)
Dimensions : without dustcover: (483 x 356 x 127) mm; with dustcover: (495 x 381 x 146) mm

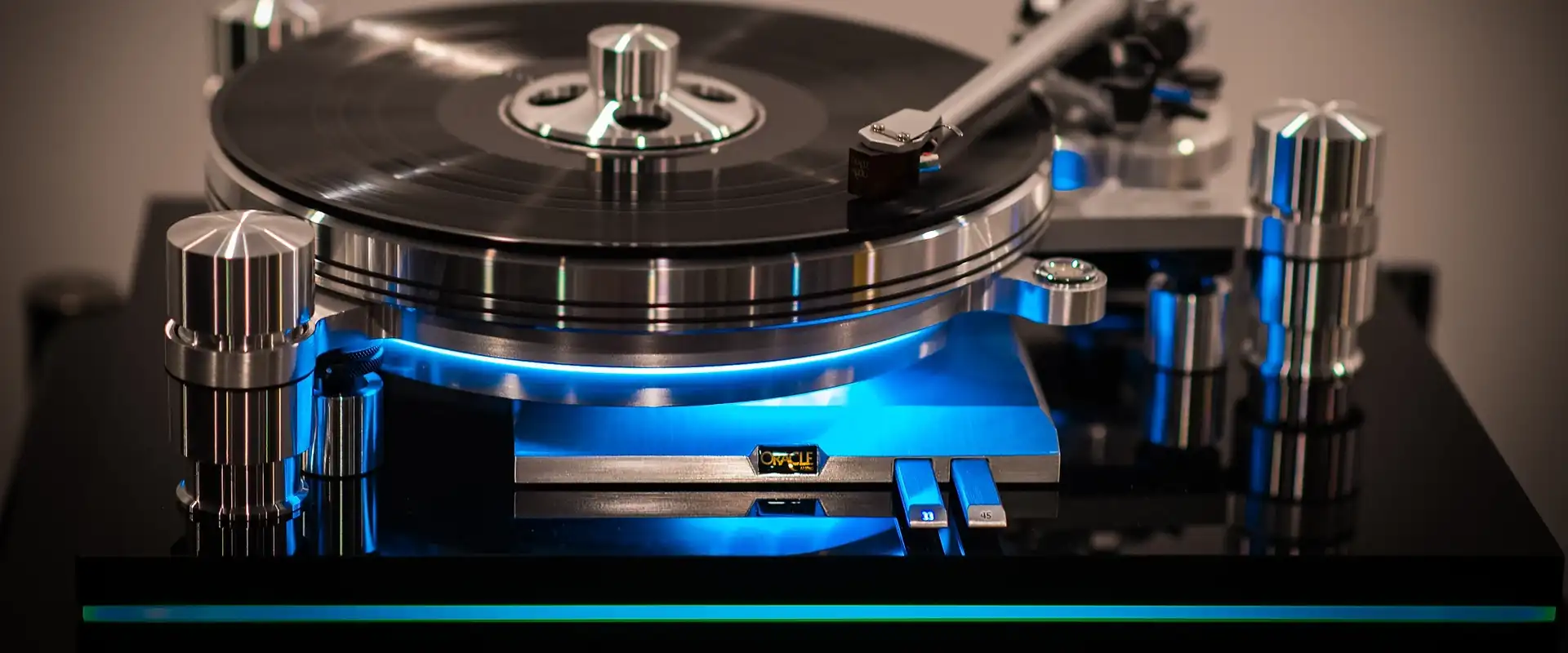

Delphi MkVI
The Oracle is a true icon!
Using the finest components and design technologies, the Oracle Delphi MkVII is exquisite in all aspects. Like its predecessors the Delphi MkVII is supported by three suspension pillars to efficiently control unwanted vibrations.
It harbors a massive belt-driven platter that uses our famous record clamping system which was first introduced by Oracle back in 1979.
The Delphi’s floating chassis, milled from solid billets of 6061T6 aluminum/magnesium alloy, is an extremely rigid and inert structure supporting the tonearm and the platter.
Delphi MkVI
Katso tekniset tiedot/ Specifications Delphi MkVI
Suspension:
The Delphi sub-chassis / platter / tonearm assembly is suspended by a tripedal mounting, which eliminates room vibrations. Each suspension tower assembly combines 12 different components, using 7 different mechanical filters, all working as a whole to efficiently control unwanted vibrations.
Bearing assembly:
The traditional two bushing system has been replaced by a new system using six precision surfaced nylon screws. With this, Oracle reaches the highest level of rotational accuracy.
Motor drive electronics and drive belt:
Oracle selected a specially designed AC synchronous motor. The Delphi Mk VII features a dual current drive circuitry. This provides maximum start-up torque energy and minimum efficient operational energy, which guarantees lowest possible motor vibration. The molded belt plays an important role in maintaining maximum speed stability.
Record / Platter:
The maximum rigidity of the 4kg (8.8 pound) platter is immune to vibration by distributing most of the mass around its outer edge. The flywheel effect increases momentum. Record coupling system (standard): Oracle pioneered the now well established “record clamp system” to solve specific vinyl disc “warp” problems.
Hard acrylic mat:
The Oracle acrylic mat made from specially formulated polymer shows better matching characteristics (impedance) with the vinyl disc.
Sub-chassis:
Oracle demonstrates that superior engineering can also be aesthetic. The hand brushed aluminum with a clear lacquer coated skeletal sub-chassis will dissipate unwanted energy through efficient coupling and clamping methods. Maximum rigidity, minimal surface area and energy control are key design.
Plinth:
The standard plinth is Clear Acrylic. An optional Black Granite plinth is available for an extra charge.
Power Supply:
The Delphi Mk VII comes standard with a regular power supply. The optional Turbo Power Supply MkII is the result of an extensive development and performance comparisons between reference elements such as special batteries and monstrous power source. The Oracle Turbo Power supply outperformed them all! The turbo power source transforms an outstanding performance into a wonderful musical experience. Both power supplies ship with a removable power cord.
Oracle Reference 1 tonearm (Optional):
The Oracle Reference 1 tonearm is a currently under development and will be available in June 2023. More information will be published soon.
Dimensions: 363 X 475 X 150 mm
Weight: with acrylic base: 16 kg
Levysoitinetuvahvistimet
Paris Ph100 Phono Pre-Amplifier
Levysoitinetuvahvistin
The efforts that went into the conception of the Paris PH100 were driven by the will to answer this demand with a phono stage that provides a superior stereo image, one that is wide and also has depth, while assuring the integrity of the harmonic structure of the sound being played and providing a silent enough background for the musical notes to explode as they should!
The Paris PH100 is a versatile phono stage that can accommodate usage of any moving magnet or moving coil phono cartridges.
Indeed the PH 100 offers variable moving coil cartridge input impedance settings and variable gain using different jumper configurations.
Paris Ph100 Phono Pre-Amplifier
Katso tekniset tiedot/ Specifications Paris PH100 MkII Pre-Amplifier
Frequency response: 20Hz – 20KHz @ +/- 1dB
Total Harmonic Distortion: < 0,05% @ 20Hz – 20kHz
Moving Coil (MC) input impedance: 100, 200, 511, 1k, 1.5K and 47k Ohms
Moving Magnet (MM) input impedance: 47k Omhs
Input capacitance (MM) 150pF
Input sensitivity: 0,35mV and up
Gain (MC): 41.5dB, 52dB, 62dB
Gain (MM): must be set at 41.5 & 47k Omhs
Signal to noise ratio: > -80dB
Dimensions: 9.5 x 12.25 x 2.25 inchs
Paris Ph200 Phono Pre-Amplifier
Levysoitinetuvahvistin
The distinctive design of the Paris PH200 with its elegantly sculpted chassis carries the unique signature of the Paris series.
The secret behind the overall tonal balance and performance of the Paris phono preamplifier lies in the careful selection and combination of the different components.
The internal circuitry of the Paris PH200 is a two stage design.
The first stage has for role to amplify the faint signal coming from the phono cartridge in order to present the signal with an acceptable level to the straightening RIAA curve circuit.
The second stage has for role to amplify the signal to the required output level of the PH200….
Paris Ph200 Phono Pre-Amplifier
Katso tekniset tiedot/ Specifications Paris PH200 MkII Phono Pre-Amplifier
Moving Coil (MC) input impedence : 100Ω, 200Ω, 511Ω, 1kΩ, 1.5kΩ and 47kΩ
Moving Magnet (MM) input impedence : 47kΩ
Input capacitance (moving magnet) 150pF
Input sensitivity : 0,35mV
Gain MC : 42dB, 52dB, 62dB, 73dB
Gain MM: must be set at 42 dB & 47kΩ
Signal to noise ratio : > -80dB
Dimensions : 9.5″ x 12.25″ x 2.25″
Oracle analogue and digital products have always been designed and built as ”musical instruments” that can stand the test of time. It is our belief that achieving simplicity in design is a combination of knowledge and common sense. A properly designed device creates its own form; one that reflects the beauty of its function. True artistry combines these elements by means of the whole being greater than the sum of its parts.
Many of the problems that affect the accurate reproduction of recorded music derive from unwanted internal or external vibration. To address this issue the CD2000 MkIII and CD2500 MkIV use a massive aluminum floating chassis and a Delrin decoupling system of the cd drive. Furthermore, our unique suspension and disc clamping systems originally used in our analog turntables, have been adapted for use in our ”State of the Art” CD Players…
oracle audio DIGITAL
