Vivid Audio
GIYA G3 Cu
GIYA G3 Cu
FOR EVERY ROOM, not just listening rooms, uutuus!
GIYA G3 Cu
Upeita asioita pienissä koteloissa.
Piskuinen GIYA G3 tarjoilee samaa selkeyttä, virheetöntä tarkkuutta, basson voimaa ja laajaa stereokuvaa kuin suuremmat sisaruksensa.
Voit kokea aidon Vivid Audio -kuuntelukokemuksen lähes kaikenlaisissa miljöissä.
Oivallisen pienen kokonsa vuoksi täydellinen monitori tuomaan hienostuneen silauksen kaksikanavasysteemiisi.

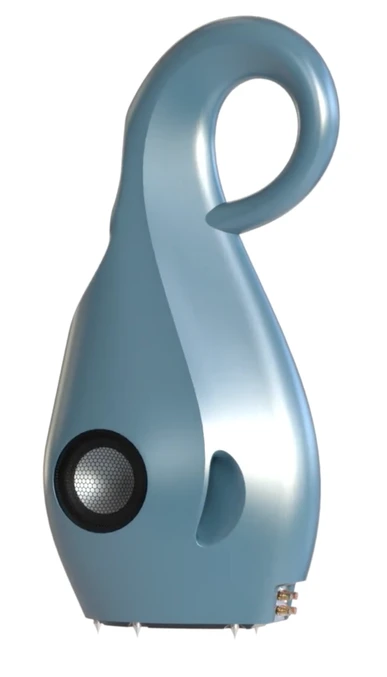

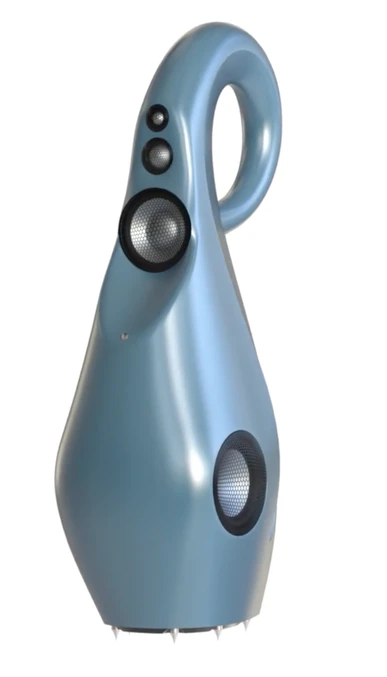

Vivid Audio GIYA G3 Cu
Katso GIYA G3 Cu tekniset tiedot/ Specifications
| Configuration | 4-way 5 driver system |
|---|---|
| Cabinet material | Glass reinforced balsa cored sandwich composite, carbon fibre base |
| Cabinet colour | Piano Black, Lexus Pearl White, Oyster Matte |
| Bespoke cabinet colour | Bespoke colour options available on request |
| Drive units | HF: D26 – 26mm alloy/carbon diaphragm dome unit with Tapered Tube loading |
| Upper-mid: D50Cu – 50 mm alloy/carbon diaphragm dome unit with copper cap and Tapered Tube loading | |
| Lower-mid: C125SCu – 125mm alloy cone/ 50mm voice coil (equivalent to 6.5” driver) unit with copper cap and Tapered Tube loading | |
| Bass: C135 – 2 x 135mm alloy cone units/76mm voice coil (equivalent to 8” ) drivers with underhung motor design | |
| Bass loading | Exponentially tapered tube enhanced bass reflex |
| Sensitivity | 87 dB @ 2.83 Vrms at 1m on axis |
| Nominal impedance (Ω) | 6 nominal, 4 minimum, low reactance |
| Frequency range (Hz) | – 6 dB points: 33 – 36.000 |
| First D26 Break Up mode (Hz) | 44.000 |
| Frequency response (Hz) | 36 – 33.000 +/- 2 dB on reference |
| Harmonic distortion (2nd and 3rd harmonics) | <0.5% below 220Hz, <0.1% between 220Hz and 3.5kHz, <0.3% above 3.5kHz |
| Cross over frequencies (Hz) | 220 – 880 – 3.500 |
| Power handling (music program) | 800 watts rms |
| Loudspeaker dimensions | 1.161mm (H) x 341mm (W) x 578mm (D) – 45,7” (H) x 13,4” (W) x 22,8” (D) |
| Net weight | 42kg 93lbs (internal crossover – 37kg (81lbs) external crossover |
GREAT THINGS IN SMALL PACKAGES
Retaining the motor structure and suspension profiles of the larger siblings, the G3 Cu is capable of producing substantial bass energy despite its reduced diameter.
The top of the bass enclosure displays the now uniquely familiar curl of the tapered tube absorber to completely eliminate the top to bottom resonances and deliver sharp accurate bass.
