KAYA S-12
2-WAY 2-DRIVERS
Transparent sound on a small footprint
Oivallisen pienen kokonsa vuoksi täydellinen monitori tuomaan hienostuneen silauksen kaksikanavasysteemiisi.
Pienestä koostaan huolimatta se tarjoaa suurempien Vivid Audio -perheen kaiuttimien kaltaista uhkeutta.
Mikäli toivot näppärää kokoa, mutta et halua tinkiä äänen laadusta ja läsnäolosta niin KAYA S-12 on paras valinta sinulle.

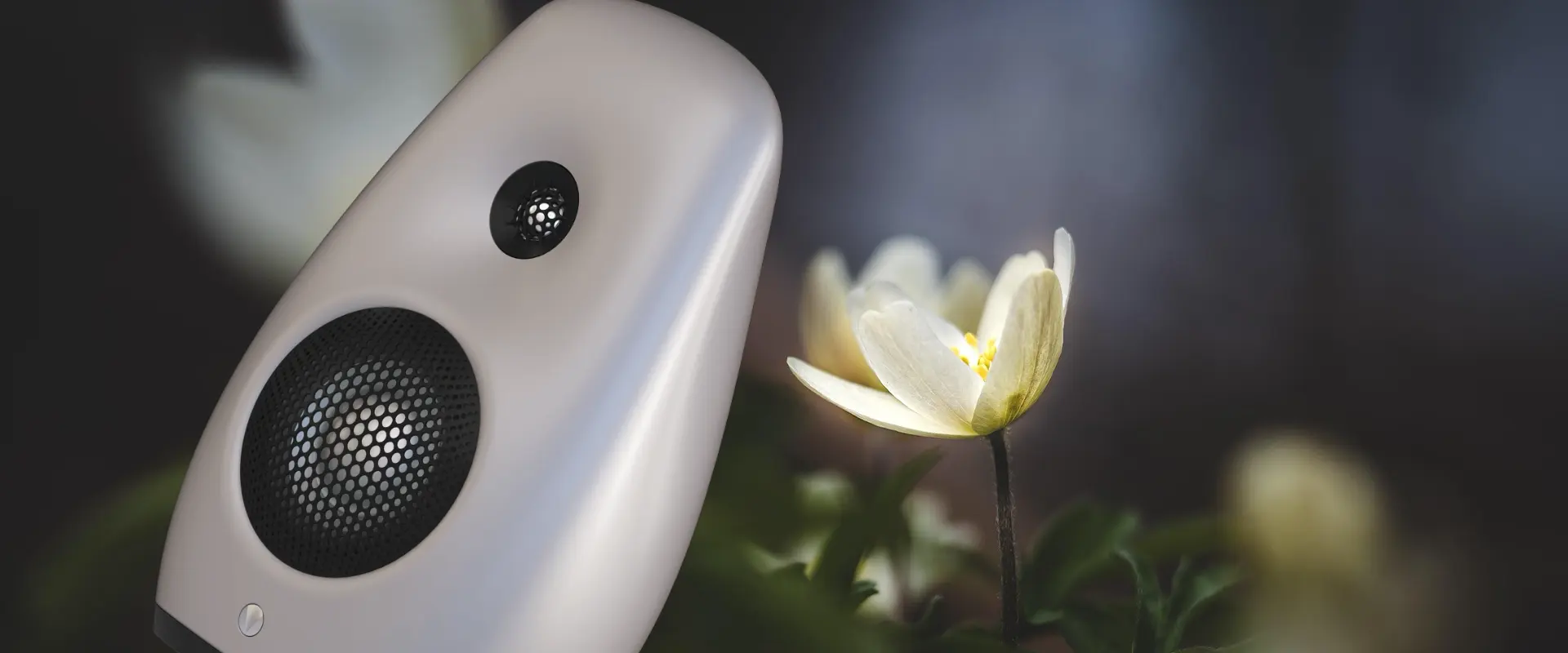

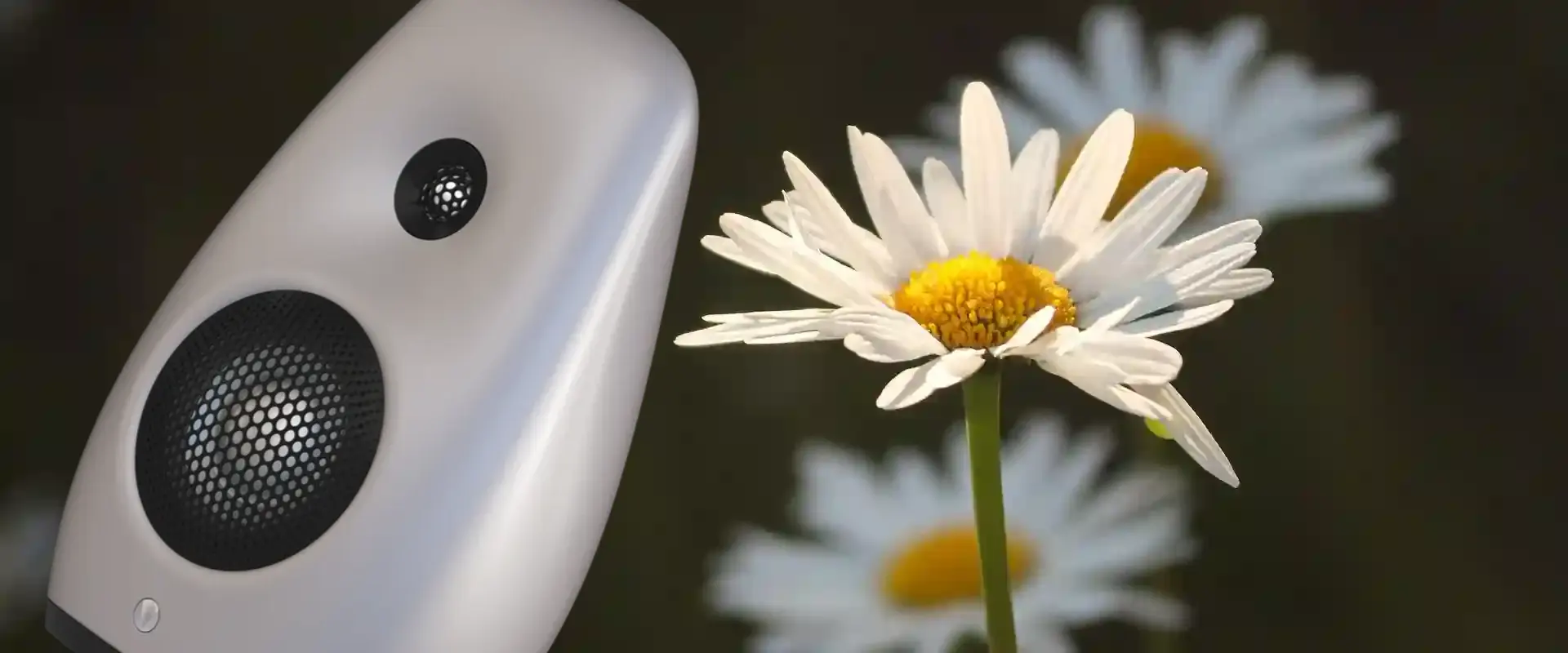

Vivid Audio KAYA S-12
KAYA S-12 tekniset tiedot/Specifications
| Configuration | 2 way 2 driver system |
| Cabinet material | RIMCast PU resin |
| Cabinet colour | Piano Black, Lexus Pearl White, Oyster Matte |
| Bespoke colour | Any PPG automotive colour available on request |
| Drive units | HF: D26 – 26mm Tapered Tube loaded alloy dome LF: C100L – 1 x 100mm alloy cone unit |
| Bass loading | Exponentially Tapered Tube enhanced bass reflex |
| Sensitivity | 85dB @ 2.83VRMS at 1m on axis |
| Nominal impedacnce (Ω) | 8Ω (5,3Ω Min) |
| Frequency range (Hz) | 45 – 25,000 Hz (-6dB) |
| First D26 Break Up mode: | 44,000 Hz |
| Harmonic distortion (2nd and 3rd harmonics) | < 0.5% over frequency range at 1W |
| Cross over frequencies (Hz) | 3,000 |
| Recommended amplifier power | 25W – 125W |
| Loudspeaker dimensions | 400 mm (H) x 237 mm (W) x 254 mm (D) |
| Net weight | 6 kg |
| Shipping dimensions | 480 mm (H) x 250 mm (W) x 270 mm (D) |
| Shipping weight | 8 kg (each) |
Why Kaya S-12?
Crucially, and despite its diminutive 12 litre internal volume, the KAYA S12 uses the patented exponentially tapered tube loaded reflex, first developed for its much larger sibling, the GIYA G1, but wrapped around the inside of the enclosure in such a way as to absorb resonance in all directions.
Enjoying this near-ideal loading is the newly-designed long throw C100L driver delivering clean precise bass and uncoloured transparent mids to a surprisingly high level.
High frequencies are handled by the same tapered tube loaded high-performance D26 tweeter used throughout the entire Vivid range.
KAYA S12 is moulded from composite material available in a range of standard and custom automotive finishes.
