Käytetyt vahvistimet, yhdistelmälaitteet ja virtalähteet
Vaihtovaliot: laitteistosi sydän

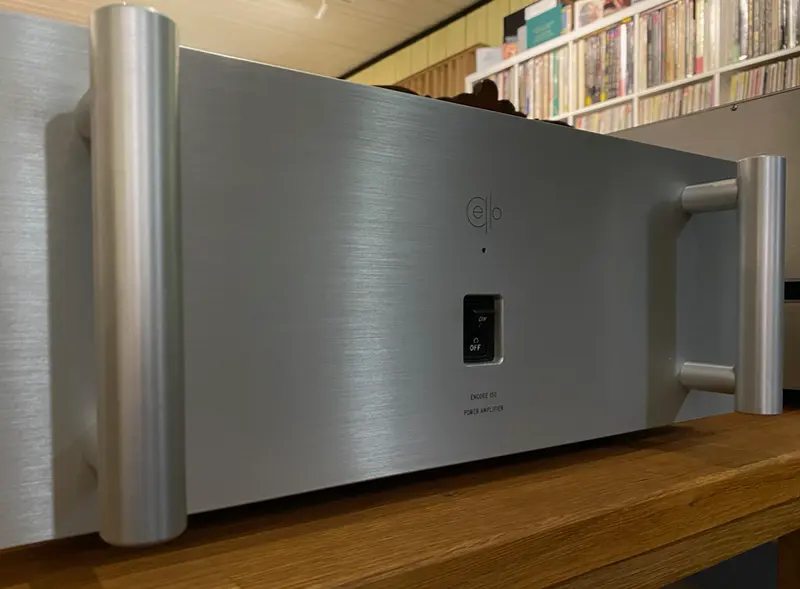

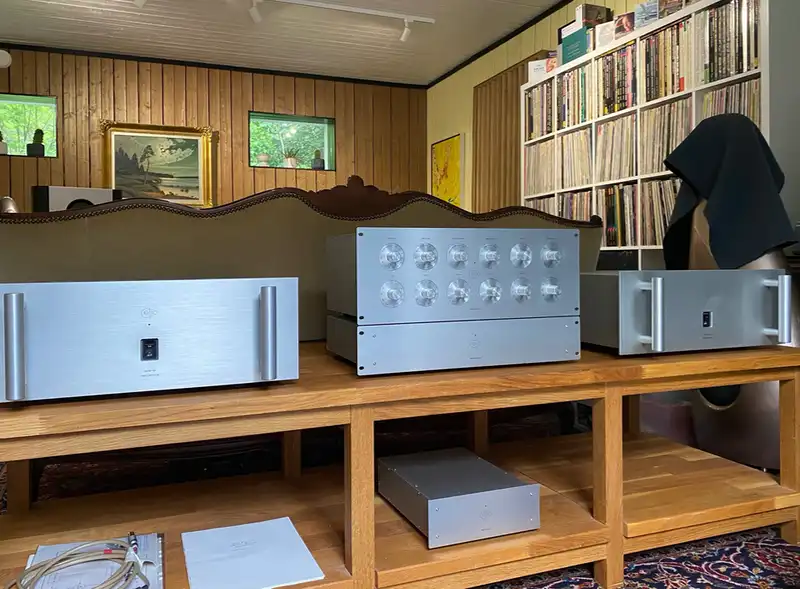

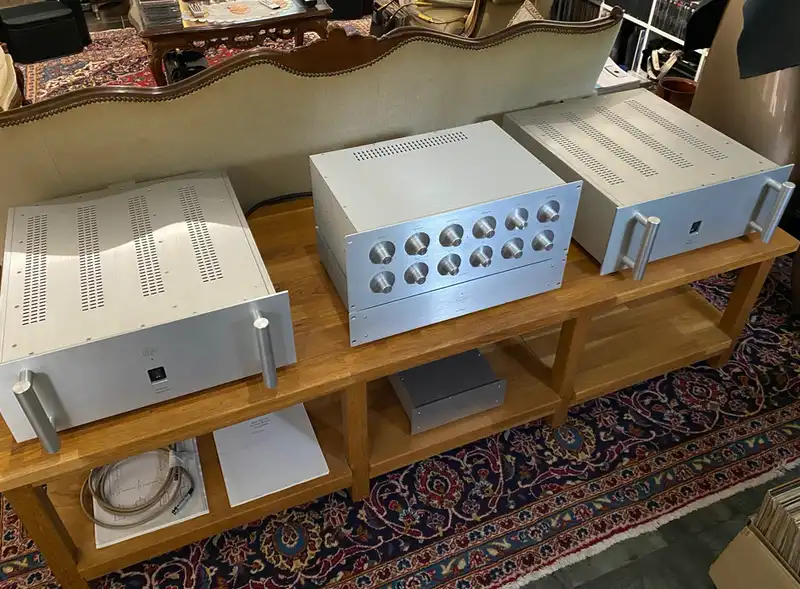

Sivuilla (ylähylly) Cellon Encore 150 -monoblokit, jotka eivät sisälly esivahvistinkokoonpanon hintaan vaan hinnoiteltu erikseen.
Ks alla oleva ilmoitus.
Technical Specifications

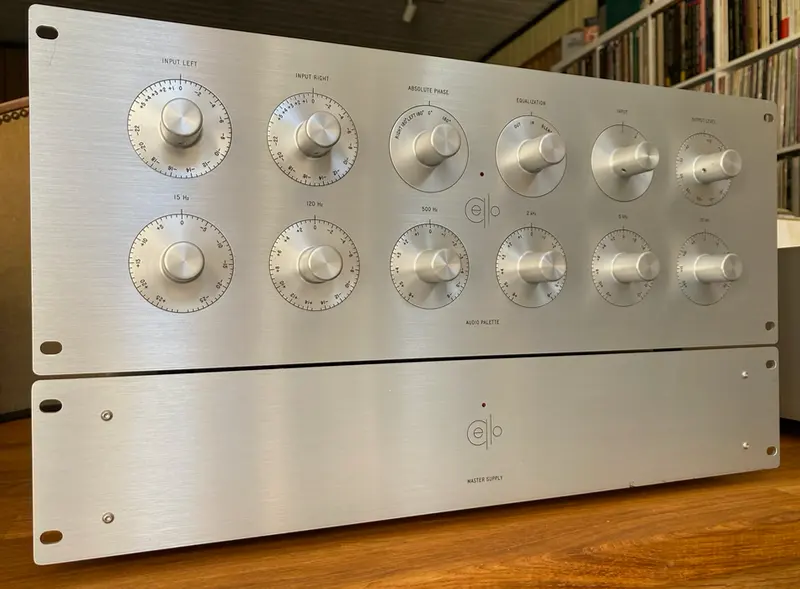

The Standard Version of the Audio Palette has one (1) Fischer 3-pin balanced input. The Multiple Input Version (M.I.V.) Audio Palette total of four (4) inputs, one (1) Fischer 3-pin balanced and three (3) single ended.
One (1) set of single ended and one (1) set of Fischer 3-pin balanced main outputs are provided.
Two (2) sets of single ended record outputs are provided.
Frequency Adjustment Controls:
25 kHz control: +/- 24 dB in 1.00 dB increments
5 kHz control: +/- 12 dB in 0.50 dB increments
2 kHz control: +/- 6 dB in 0.25 dB increments
500 Hz control: +/- 6 dB in 0.25 dB increments
120 Hz control: +/- 14.5 dB in 0.50 dB increments
15 Hz control: +/- 29 dB in 1.00 dB increments
Dimensions:
48.3 (w) / 18.8 (h) / 35.8 (d) cm (Audio Palette)
48.3 (w) / 9.9 (h) / 21.6 (d) cm (Master Supply)
Shipping Weight:
18,6 kg (Audio Palette)
15,9 kg (Master Supply)
Product Specifications
Class of operation:
Class AB2
Power Output:
@8 Ohms Rated: 150 Watts;
@4 Ohms Rated: 300 Watts;
Non-bridgeable
IMD (SMPTE):
<0.05% (60 Hz / 8 Ohms / 150 Watt Output)
THD (20 – 20000Hz):
<0.1% (8 Ohms / 150 Watt Output)
<0.2% (4 Ohms / 300 Watt Output)
Frequency Response:
+/-0.2 dB @ 20 – 20000 Hz
Dynamic Headroom:
3 dB
Channel Separation:
Infinite
Signal to Noise:
< -110 dB (10 – 22000 Hz / Rated Output)
Input Sensitivity:
1.8 V (8 Ohms / 150 Watts)
Input Impedance:
1 mOhm (Non-Inverting)
1 mOhm (Inverting)
Gain:
26 dB
Dimensions:
48.3 (w) / 17.8 (h) / 53.3 (d) cm (each of two chassis)
Shipping Weight:
44.5 kg each unit
88.9 kg each pair
Technical Specifications
Input
high speed schematic topology and wide band (>2 MHz)
Input Impedance
47Kohm (not selected input) / 10 Kohm (Selected Input)
Input Configuration
Phono MM/MC, Line, Balanced, Multichannel & DAC option
Output
1 RCA, 1 XLR Balanced
Output Impedance
220 ohm
Output Voltage
7.5 V r.m.s.
Frequency Response
0 Hz – 2.0 MHz (-3dB, non filtered)
Gain
17.5 dB Active mode, 0 dB Passive mode
Circuitation
Solid state, Dual Mono, hi speed, low noise
Supply
230 V AC / 50 Hz (100V AC or 115 VAC / 50-60Hz in some countries)
Dimensions (HxWxD)
110 x 430 x 365 mm
Weight
15 Kg
Note
Stereophonic Preamplifier completely RC
Technical Specifications
Connections
1 RCA, 1 XLR Balanced
Input Impedance
47Kohm (non sel. input) / 33Kohm (sel. input)
Outputs Voltage
1 Binding Post couple, 4mm Banana and forks
Frequency Response
0 Hz – 2.0 MHz (-3dB, non filtered)
Output Power
150W RMS / 8Ohm – 280W RMS / 4 Ohm (per channel)
Gain, Sensitivity
28.5 dB, 1.30 V r.m.s. / 150 W – 8 Ohm
Configuration
Dual Mono
Configuration
Solid state
Power devices
MosFet, 4 couple each channel
Available output current
48 A continuous, 200 A peak (each channel)
Capacity of filter
72.000 Uf, 12 capacity for each channel
Electric Transformers
2 toroidal special audio use, 400 VA each channel
Supply
230 V AC / 50 Hz (100V AC or 115 VAC / 50-60Hz in some country)
Dimensions (HxWxD)
110x430x365mm (excluding footers and rear connections)
Note
Stereophonic final amplifier
Weight
25 Kg
