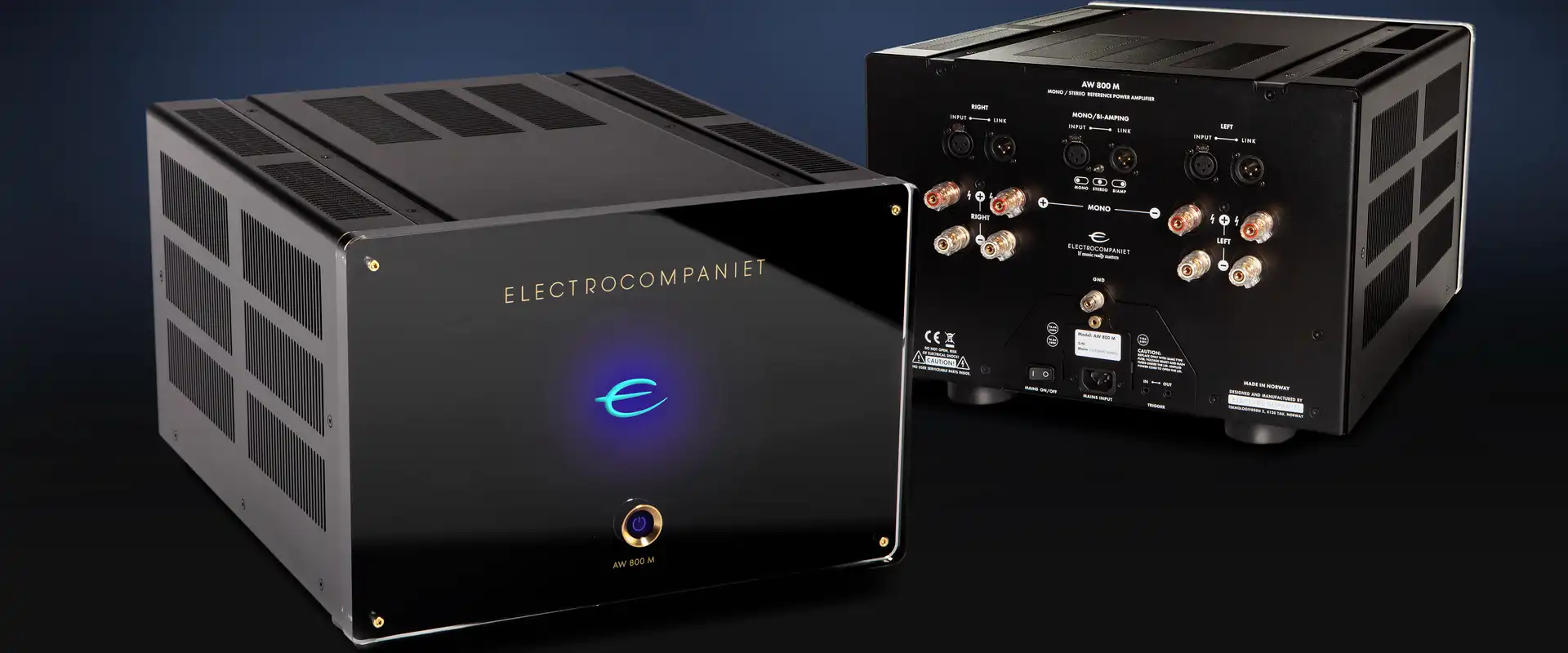

AW 800 M Reference Monoblock Power Amplifier
Monopäätevahvistin
The AW 800 M is Electrocompaniet’s brand-new flagship power amplifier.
It replaces the legendary AW 600 NEMO as our most powerful monoblock power amplifier.
The amplifier showcases an updated, yet unmistakable and distinctive Electrocompaniet design that is a perfect match for all current and legacy Electrocompaniet products.
Reference monopäätevahvistin
Tekniset tiedot/ Specifications AW 800 M, Reference Monoblock Power Amplifier
| Input impedance: 330 kΩ |
| Frequency resp. (in. filter active):0.5 – 220 kHz |
| Frequency resp. (in. filter dis.): 0.5 – 1.1 MHz |
| Voltage gain (mono, bal. input): 35 dB (x56) |
| Voltage gain (stereo, bal. input): 29 dB (x28) |
| Input-referred noise (20-20kHz): < 2 μV |
| SNR (ref. 1W/8Ω load, 20-20 kHz): 95 dB |
| SNR (ref. full power out, 20-20 kHz): 122 dB |
| Slew-rate (input filter disabled): 270 V/μs |
| DC output voltage: < 5 mV |
| THD+N: 0.0006 % |
| IMD: 0.001 % |
| Damping factor (8Ω load): > 1000 |
| Power consumption standby: < 0.5W |
| Protection: DC, overload, temperature |
| RATED OUTPUT POWER STEREO: |
| 8Ω load: 2 x 300 W |
| 4Ω load: 2 x 600 W |
| 2Ω load: 2 x 1000 W |
| RATED OUTPUT POWER MONO: |
| 8Ω load: 800 W |
| 4Ω load: 1500 W |
| 2Ω load: 2200 W |
| WEIGHT & DIMENSIONS: |
| Weight: 55 kg – 122 lbs |
| Width: 406 mm – 15.98 inches |
| Depth: 488 mm – 19.21 inches |
| Height: 292 mm – 11.49 inches |
| *Features and specifications are subject to change without further notice. |
AW 300 M Mono Power Amplifier
Monopäätevahvistin
The AW 300 M is Electrocompaniet’s latest Mono Power Amplifier.
This amplifier embodies an updated, yet unmistakable Electrocompaniet design, perfectly complementing both current and legacy Electrocompaniet products.
The AW 300 M outputs 300 Watts of pure power into 8 Ohms with vanishingly low distortion figures.
At 4 Ohms, the power is impressive 600W and AW 300 M can deliver mighty 1000 watts into 2 Ohms!
The power supply has undergonesubstantial enhancements, featuring a generous 110,000 uF supply filtering.
Mains power input is heavily filtered for both DC and RF noise. Feeding the supply is an 800VA wire gauge upgraded transformer, with magnetic and electrostatic shielding that effectively minimizes interference from the mains.
Monopäätevahvistin
Katso tekniset tiedot/ Technical Specifications AW 300 M Mono Power Amplifier
| Rated output mono | |
| 8Ω load: 300 W | |
| 4Ω load: 600 W; 2Ω load: 1000 W | |
| Input impedance | 330 kΩ |
| Frequency resp. (in. filter active) | 0.5 – 220 kHz |
| Frequency resp. (in. filter dis.) | 0.5 – 1.1 MHz |
| Voltage gain (mono, bal. input) | 29 dB (x28) |
| Input-referred noise (20-20kHz) | < 2 μV |
| SNR (ref. 1W/8Ω load, 20-20 kHz) SNR (ref. full power out, 20-20 kHz) | 95 dB 120 dB |
| Slew-rate (input filter disabled) | 140 V/μs |
| DC output voltage: | < 5 mV |
| THD+N | 0.0006 % |
| IMD | 0.001 % |
| Damping factor (8Ω load) | > 1000 |
| Power consumption standby | < 0.5W |
| Protection | DC, overload, temperature |
| Dimensions | |
| Width | 212 mm |
| Depth | 488 mm |
| Height | 292 mm |
| Weight | 30 kg |
AW250R, Stereo Amplifier
Stereopäätevahvistin
The Electrocompaniet AW250R power amplifier is known for its uncoloured and excellent reproduction qualities.
From the first note of any familiar recording, you will be captivated by the AW250R and by the musical enjoyment it will give you.
The AW250R incorporates such refined features as: FTT (Floating Transformer Technology) power supply, capable of delivering twice the current of conventional power supply designs, as well as first class overall circuit design and state-of-the-art components.
Compared to more expensive High-End power amplifiers with lesser performance, you will truly cherish the AW250R.
The Electrocompaniet AW250R features a balanced link to additional amplifier(s) for bi-amping. It can thus easily be used in bridged mode, delivering up to four times the power.
Stereopäätevahvistin
Katso tekniset tiedot/ Technical Specifications AW250R Stereo Amplifier
| All measurements are made at 120V / 240V //50Hz / 60Hz | |
| Amplifier section | |
| Output Impedance (20 Hz – 20 kHz) | < 0,008 ohm |
| XLR (balanced) input impedance | 110 kohm |
| Input sensitivity for rated output | 1 V |
| Max. peak current | > 100 A |
| THD (measured at 1 kHz half power, 8 W) | < 0,001 % |
| THD (measured at 1 kHz -1 dB, 8 W) | < 0,001 % |
| Noise (measured with both inputs shorted) | 400 Hz – 30 kHz : 90 µV 10 Hz – 30 kHz : 100 µV |
| Rated output power | |
| 8 ohms | 2 x 250 W |
| 4 ohms | 2 x 380 W |
| 2 ohms | 2 x 625 W |
| 1 ohms | 2 x 1100 W |
| Power consumption(no load or signal) | 230 W |
| Dimensions | |
| Width | 483 mm / 19 inches |
| Depth | 450 mm / 17 inches |
| Height | 210 mm / 8.2 inches |
| Weight | 39 kg. / 85.8 lbs. |
