Electrocompaniet

Classic Line digital

electrocompaniet – classic line

if music really matters

Classic Line Digital: CD-soitin

EMC 1 MKV Reference CD player

CD-soitin

Since 1998, Electrocompaniet has produced one of the best sounding CD players on the market, the EMC 1 UP.

The new EMC 1 MKV builds upon this legacy and refines by using a new drive unit.
The MKV also introduces updated electronics for better sonic performance, new mechanics for more rigid construction and brand new chassis with updated design to be in line with the new MKII edition of our other products.

Hinnasto

EMC 1 MKV Reference CD player, 7.749 €

Hinta sisältää alv 25.5 %

electrocompaniet_main — No-compromise mechanical design with five different housings, which shield analogue, digital, transport, transformer and controller circuitry.

Katso tekniset tiedot/specifications EMC 1 MKV Reference CD player

Output level	(unbalanced) 2.3Vrms(balanced) 4.6Vrms
Noise floor	< -130dB
Frequency deviation	(20-20kHz) 0.05dB
Channel separation	> 110 dB
THD+N	<0.003%
Dynamic range	120 dB
Power consumption	25 W
Digital/analog conversion	24 bit/192kHz
Power consumption Standby	0.5 W
Compatible formats: CD, CD-R, CD-RW
Digital outputs: SPDIF COAX, SPDIF TOSLINK
Control inputs: RS232, 12V Trigger
Other
True balanced system
Mechanical filter which cancels acoustic/mechanical vibrations preventing the laser pick-up from receiving unwanted signals
Fully remote (no volume control)
Dimensions
Width	470 mm / 18.5 inches
Depth	422 mm / 16.6 inches
Height	118 mm / 4.64 inches
Weight	18 Kg / 39.6 lbs.

KUUNNELTAVISSA!

Upea EMC 1 MKV Reference CD-soitin on meillä kuunneltavissa.

Varaa itsellesi kuunteluaika tästä

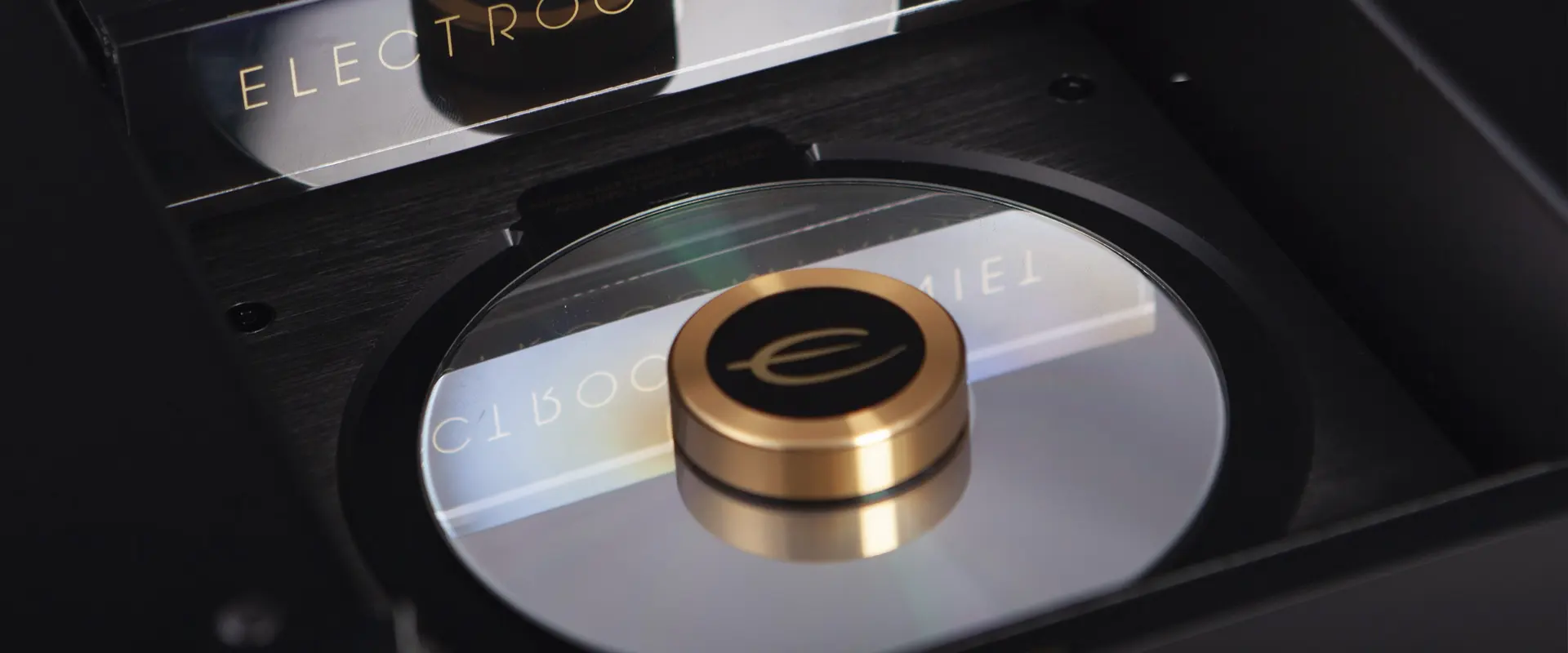

electrocompaniet_cd_open-1 — Top Loading CD Transport
Preventing the laser pickup from receiving mechanical distortions.

electrocompaniet_cd-player_back_close — Balanced audio
Fully balanced D/A converter with discrete analog audio circuitry.

electrocompaniet_cd-player_soundcare_foot — SOUNDCARE® SUPERSPIKES™
is an all-in-one spike foot. The unique construction.

electrocompaniet_cd-player_close_buttons

Classic Line Digital: dac / striimeri

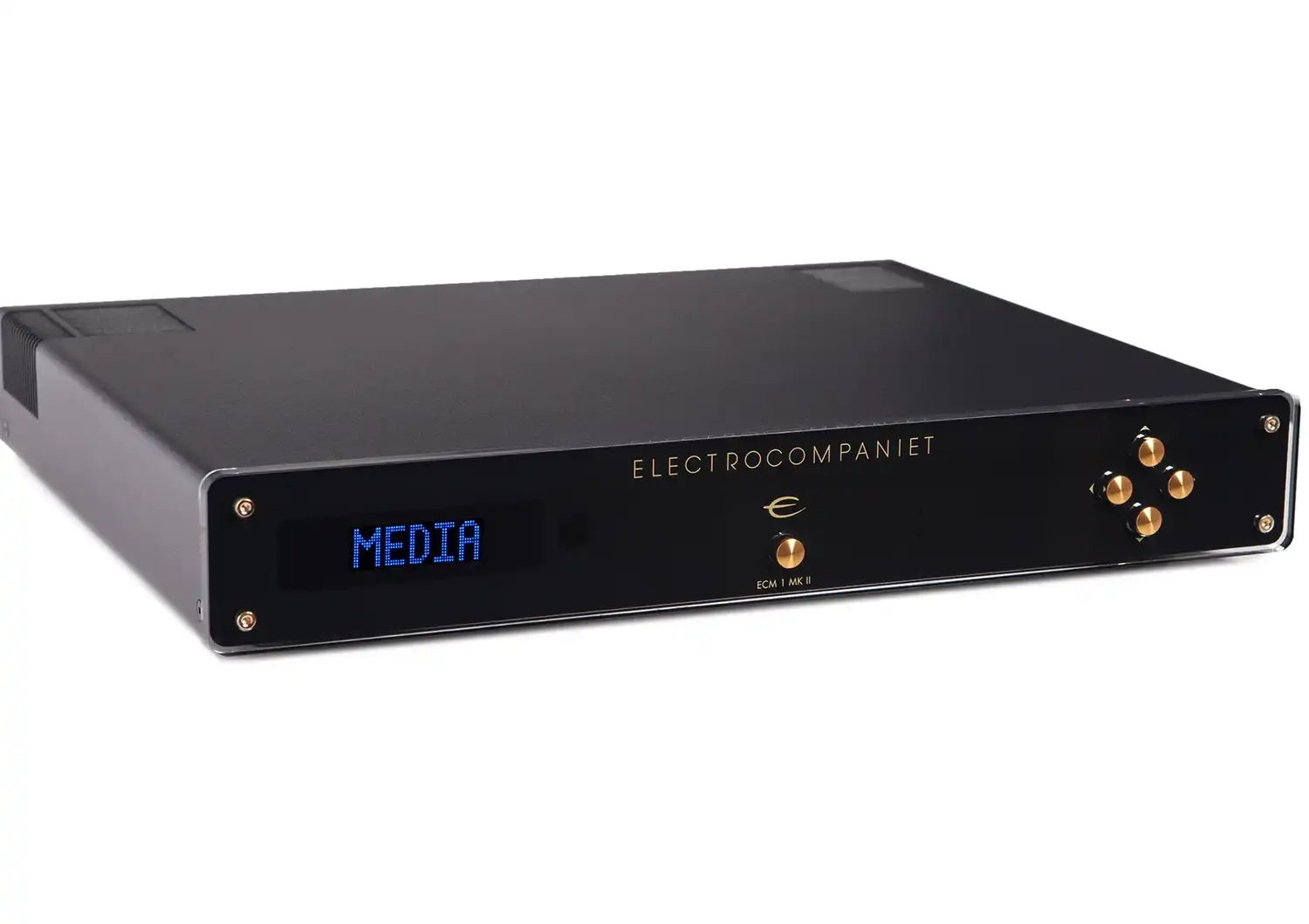

ECM 1 MKII High End DAC and Music Streamer

DAC/striimeri

The new ECM 1 MKII is a DAC and music streamer.

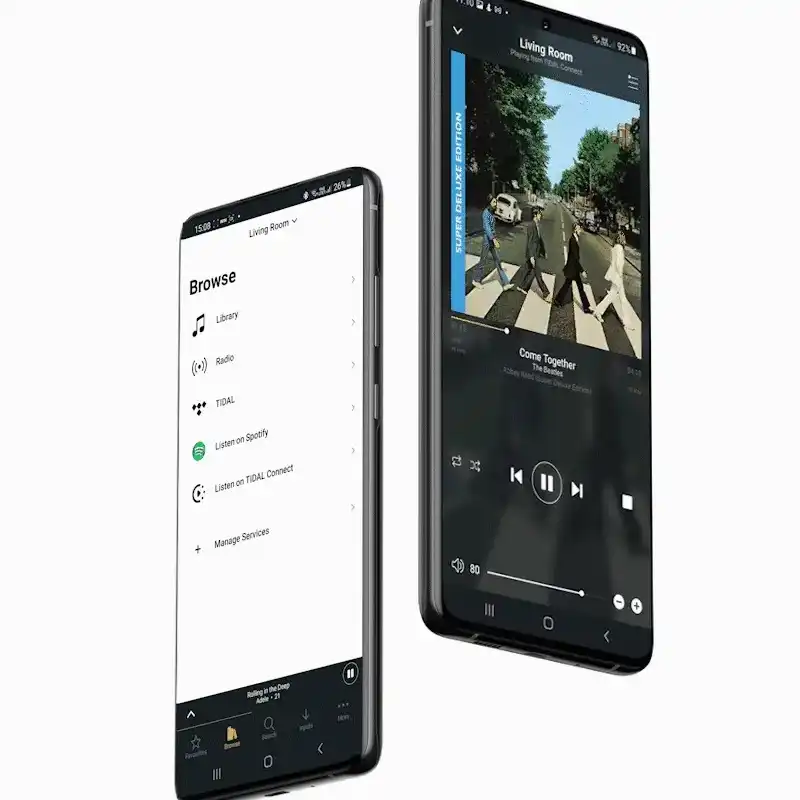

With the brand new, in-house developed streaming software and app, it plays lossless, DSD and high-resolution digital content in a way that really makes you want to dig deeper into all the delightful music out there.

Hinnasto

ECM 1 MKII High End DAC and Music Streamer, 5.999 €

Hinta sisältää alv 25.5 %

Katso tekniset tiedot/specifications ECM 1 MKII High End DAC and Music Streamer

All measurements are made at 120V / 240V //50Hz / 60Hz

No. of channels	2
Output Impedance	300 Ohms
Noise floor (20 – 20 kHz)	< -145 dB
Frequency response	0.5 – 48 kHz
THD+N	< 0,0005 %
Upsampling rate	192 kHz, 24 bit
Digital/Analog conversion	192 kHz, 24 bit

Input sampling rate:
2 x SPDIF Coax	192 kHz, 24 bit
2 x SPDIF TOSLink	192 kHz, 24 bit

Network connection:	Wi-Fi or LAN

Internal drive:	Docking, self installation. 3.5″/2.5″ – unlimited capacity.

Supported audio formats:	All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, AIFF, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz)

Supported control interfaces:	DLNA, UPnP, Android and iOS remoteInternal storage: docking, self installation

Streaming services:	• AirPlay 2 ® • Spotify ® Connect • Qobuz ® • Plays with Audirvāna • TIDAL ® Connect • Roon Ready • DLNA • Internet Radio • Bluetooth streaming from any Bluetooth enabled device

Power consumption (no load or signal)	50 W
standby	0.5 W

Dimensions

Width	470 mm / 18.5 inches
Depth	381 mm / 14.99 inches
Height	80 mm / 3.14 inches
Weight	8.3 kg. / 18 lbs. *(without internal drive)
