Electrocompaniet – classic line
if music really matters™
ECI 80D Integrated Amplifier
Integroitu vahvistin
The ECI 80D is brand new integrated amplifier.
The new ECI 80D offers 2 x 80 Watts into 8 Ohms, using an in-house developed Class A/B Amplifier.
Electrocompaniet have equipped it with a built-in RIAA pre-amplifier for your LP player (MM cartridge support), 2-way Bluetooth HD for both streaming from your iOS, Android unit, Mac, or PC, and also HD streaming to your High-end headphones. And of course a 5-input DAC (3 Toslink, 2 COAX)
Integroitu vahvistin
Katso tekniset tiedot/ Technical specifications ECI 80D Integrated Amplifier
| PREAMPLIFIER: |
| Input impedance: 75 kOhms |
| Noise floor:< -130dB |
| THD+N: < 0.002% |
| Frequency response (-3dB): 1 – 150 kHz |
| Volume adjustment range: – 110dB to +15 dB |
| OUTPUT AMPLIFIER: |
| THD+N: < 0.005% |
| Output power (into 8 Ohms): 2 x 80W |
| Output power (into 4 Ohms): 2 x 150W |
| Damping factor (8 Ohms load): > 300 |
| Frequency response (-3dB): 1 – 150kHz |
| SNR (input shorted, ref 1W into 8 ohms, A-weighted): 102 dB |
| Gain: 25 dB |
| Protection: DC, overload, temperature |
| RIAA PHONO: |
| Pickup support: Moving Magnet |
| Gain: 40 dB @ 1kHz |
| Input impedance: 47 kOhms || 100pF |
| RIAA correction accuracy: +/-0.1dB, 25-20kHz |
| Subsonic filter: -3 dB @ 14 Hz |
| THD: < 0.001% |
| SNR: 83 dB (A-weighted) |
| Overload margin: 30dB @ 1kHz |
| HEADPHONE AMPLIFIER: |
| THD+N: < 0.001% |
| Load impedance single output in use: > 16 Ohms |
| Load impedance both outputs in use: > 32 Ohms |
| Max output power (into 16 Ohms load): 0.4W |
| Max output voltage swing: +/-8V peak |
| Output impedance: 10 Ohms |
| Protection: DC, overload |
| DIGITAL & STREAMING: |
| Optical input: PCM: 44.1kHz/16bit up to 192kHz/24bit |
| Coaxial input: PCM: 44.1kHz/16bit up to 192kHz/24bit |
| Bluetooth support: BT5.0, A2DP, SBC, AAC, aptX-HD |
| CONNECTIVITY: |
| Digital inputs: 2 coaxial, 3 optical |
| Analog inputs: 2 RCA |
| Analog preamplifier output: 1 RCA |
| Service port: 1 USB |
| 12V trigger: 1 input, 1 output |
| Phono MM: 1 RCA |
| Headphone outputs: 3.5mm jack + 6.35mm jack |
| Speaker outputs: 1 pair binding posts |
| WEIGHT & DIMENSIONS: |
| Weight: 8 kg – 17.6 lbs |
| Width: 470 mm – 18.5 inches |
| Depth: 262 mm – 10.3 inches |
| Height: 90 mm – 3.5 inches |
| VOLTAGE & POWER CONSUMPTION: |
| Mains input voltage: 100-240VAC, 50/60Hz, 3A |
| Idle (no load or signal): 30 W |
| Standby: < 0.5 W |
| OFF (main switch OFF): 0 W |
| *Specifications are subject to change without further notice |

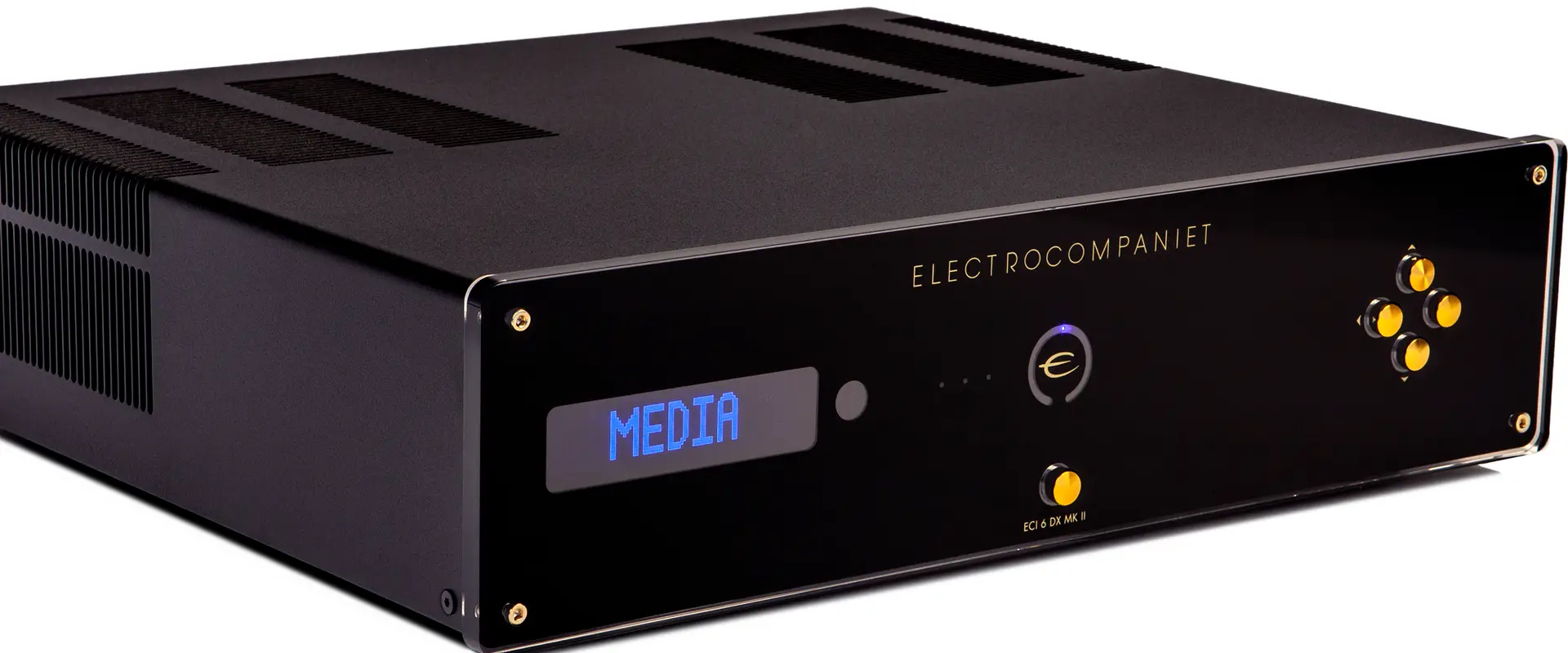

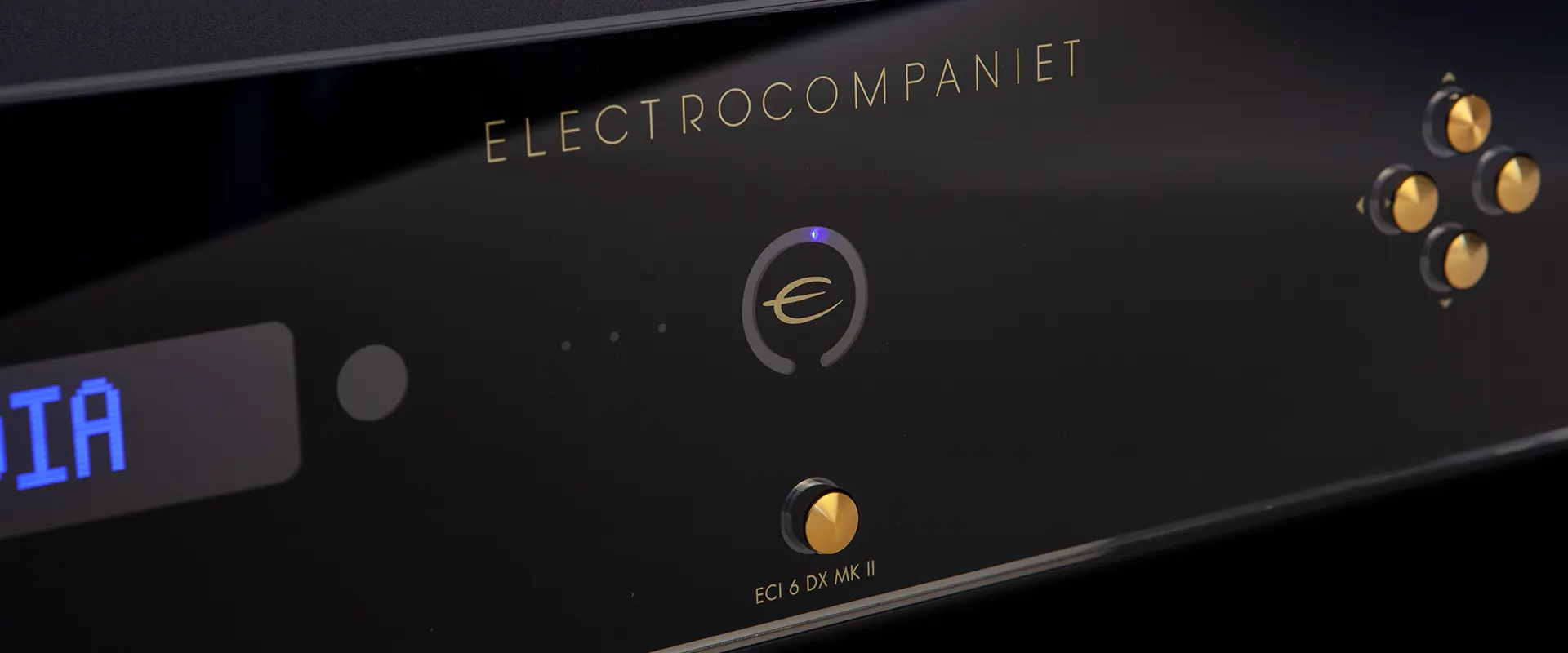

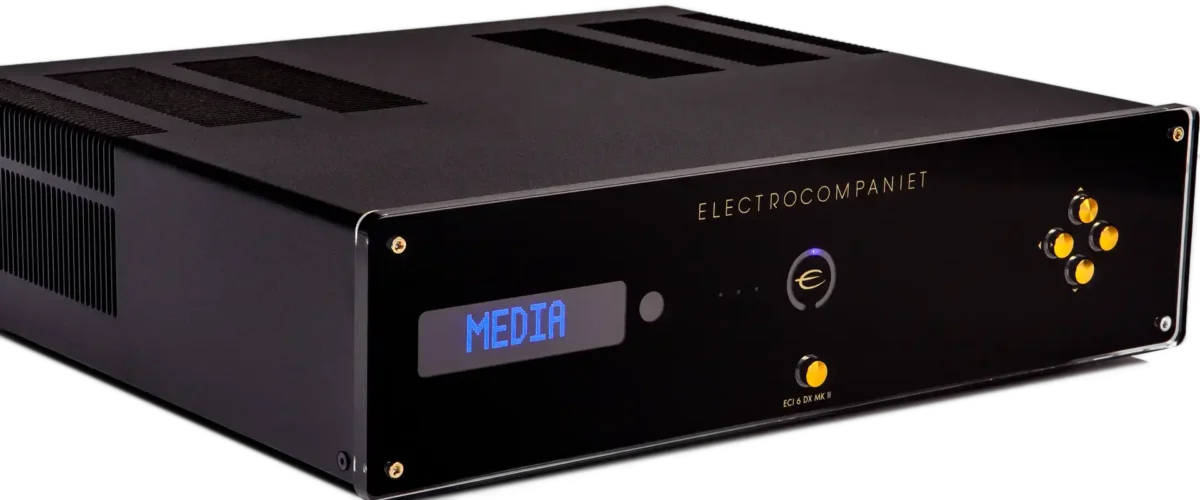

ECI 6 DX MKII, Integrated Amp/DAC/Streamer
Integroitu vahvistin
The new ECI 6 DX MKII combines a best-in-class feature set with cutting edge audio technology and true Electrocompaniet sound.
This single unit is able to play whichever, wherever and whatever audio source you may have, and makes it sound like music was meant to be sounding.
Integroitu vahvistin/DAC/striimeri
Tekniset tiedot/Technical specifications ECI 6 DX MKII, Integrated Amp/DAC/Streamer
| All measurements are made at 120V / 240V //50Hz / 60Hz | |
| Digital section: | |
| D/A converter | 24 bit/192 kHz |
| Sample rate converter | 24bit / 192kHz |
| Inputs | SPDIF, 2x Toslink, 1x USB |
| USB: | asynchronous up to 24bit/ 192kHz supported |
| SPDIF: | 24bit/ 192kHz |
| Toslink: | 24bit/ 96kHz |
| Streamer section • Advanced 802.11 AC WiFi with MIMO • 1x Gigabit Ethernet (1000Mbps) • 1x USB for external storage • iOS, Android and web app | |
| Streaming services • AirPlay 2 ® • Spotify ® Connect • Qobuz ® • Plays with Audirvāna • TIDAL ® Connect • Roon Ready • DLNA • Internet Radio • Bluetooth streaming from any Bluetooth enabled device | |
| Supported formats: • All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz) | |
| Preamplifier section | |
| Input impedance ( Balanced input ) | 47Kohm |
| Maximum input level | 10 Volt RMS |
| Noise floor ( 1Vrms, 20 – 20 kHz, balanced) | -135 dB |
| THD + N (1Vrms, 20 – 20 kHz, balanced) | <0.004% |
| Gain (Balanced) | 0 dB |
| Amplifier section | |
| Output Impedance | < 0,02 Ohm |
| Frequency response | 1 – 150 kHz |
| Channel separation | > 120 dB |
| THD ( 20 – 20 kHz) | < 0.004% |
| Maximum peak current | >100A |
| Damping factor 8 ohm load | >350 |
| I Input sensitivity 120W output | 1.3Vrms |
| Input sensitivity HT 120W output | 1Vrms |
| Gain HT Input | x36 (31 dB) |
| Rated output power | |
| 8 ohms | 2 x 125 W |
| 4 ohms | 2 x 200 W |
| 2 ohms | 2 x 370 W |
| Power consumption | 110 W |
| Standby | 1W |
| (no load or signal) | |
| Dimensions | |
| Width | 470 mm |
| Depth ( with a speaker terminals) | 430 mm |
| Height | 128 mm |
| Weight | 20,5 Kg |

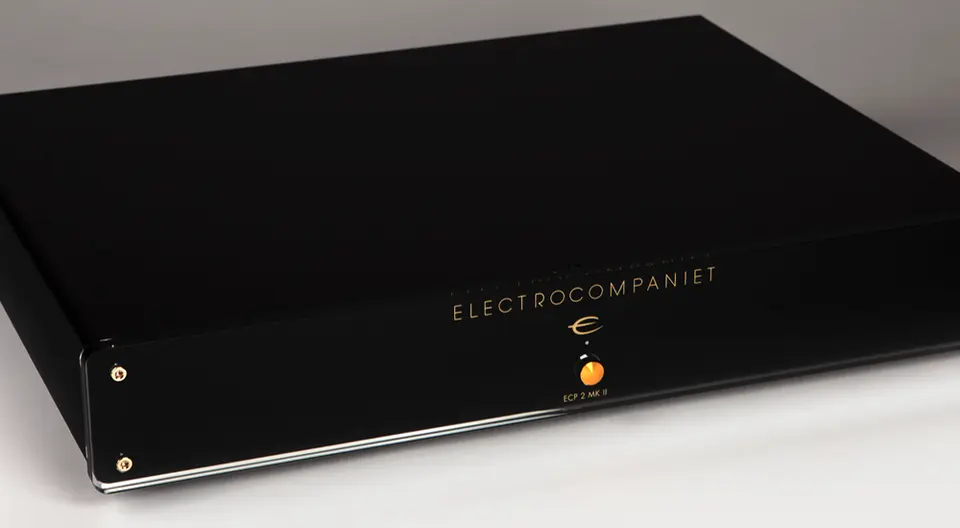

ECP 2 MKII, Phono Stage
Levysoitinetuvahvistin
With the renewed international enthusiasm for the vinyl format, a world-class phono preamplifier or RIAA stage is more important in a reference setup than ever before.
The ECP2-MKII has become a new favorite of reviewers and enthusiasts alike. A benchmark product in its price bracket, much like other Electrocompaniet products.
It incorporates state-of-the-art instrumentation and operational amplifiers and highest quality discrete components in the signal path. Of course it is all DC coupled.
The ECP2-MKII introduces new chassis and front plate design, in line with our other products in the Classic Line.
It will make your vinyl records sing like no other phono preamplifier we know of, and it seems the industry agrees with us.
Levysoitinetuvahvistin
Tekniset tiedot/ Technical Specifications ECP 2 MKII, Phono Stage
| Phono section | |
| Gain @ 1 kHz RCA | Adjustable 39,8 – 71,4 dB |
| Gain @ 1 kHz XLR | Adjustable 45,8 – 76,4 dB |
| Resistance loading (RL) | Adjustable 10 Ω – 47 kΩ |
| Capacitive loading (CL) | Adjustable 0 – 350 pF |
| Maximum output level: | 17.5 V rms (+ 25 dB V) |
| Overload margin | > 31 dB @ 1 kHz |
| Output impedance | 100 Ω single-ended, 200 Ω balanced |
| Frequency response | 20 – 20 kHz +/- 0.2 dB |
| RIAA Correction Accuracy | ± 0,1 dB |
| Subsonic filter | -3dB @ 11 Hz, 24 dB/octave |
| Channel separation | > 85 dB, 20 – 20 kHz |
| THD + Noise | < 0.003 % @ 1 kHz |
| S/N-R | 96 dB, 1 kHz, A-weighted, ref. 10 dB V output |
| S/N-R | 91 dB, 1 kHz, A-weighted, ref. 5 mV input |
| S/N-R | 67.4 dB, 1 kHz, A-weighted, ref. 500 μV input |
| Dimensions | |
| Width | 470 mm |
| Depth | 373 mm |
| Height | 78 mm |
| Weight | 9 kg |
Always the highest quality of reproduction regardless of the digital or analogue music source.
